射频放大器 Low Noise Amplifier MMIC for GPS
Overview

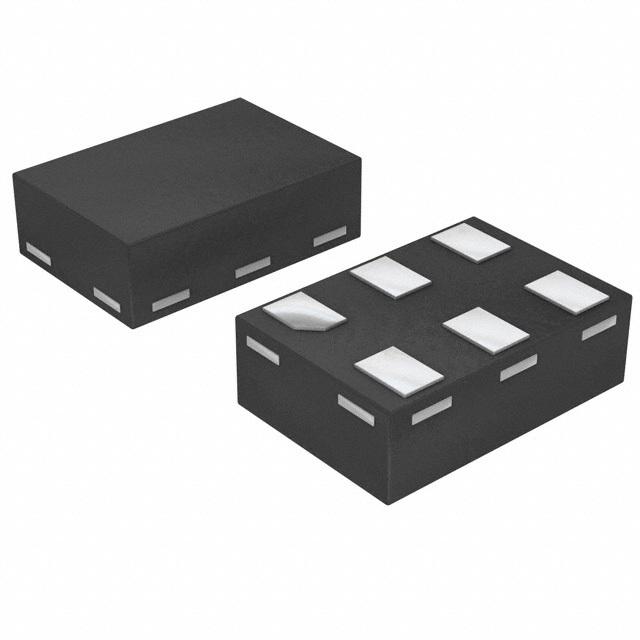

The BGU6009/N2 is, also known as the GPS1002M, a Low-Noise Amplifier LNA for GNSS receiver applications in a plastic leadless 6-pin, very thin small outline SOT1230 package. The BGU6009/N2 requires only one external matching inductor and one external decoupling capacitor.
MoreLess
## Features
* Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
* Noise figure = 0.9 dB
* Gain 17 dB
* High input 1 dB compression point Pi1dB of -4 dBm
* High out of band IP3i of 7 dBm
* Supply voltage 1.5 V to 3.1 V
* Power-down mode current consumption < 2 μA
* Optimized performance at low supply current of 5.1 mA
* Integrated matching for the output
* Requires only one input matching inductor and one supply decoupling capacitor
* Input and output DC decoupled
* ESD protection on all pins HBM > 2 kV
* Integrated temperature stabilized bias for easy design
* Small 6-pin leadless package 1.1 mm x 0.9 mm x 0.47 mm; 0.4 mm pitch: SOT1230
## Target Applications
LNA for GPS, GLONASS, Gallileo and COMPASS Beidou.
* Smart phones and feature phones
* Tablet PCs
* Personal Navigation Devices
* Digital Still Cameras
* Digital Video Cameras
* RF front-end modules
* Complete GPS chip set modules and theft protection laptop, ATM
## Features
* Complete GPS chip set modules and theft protection laptop, ATM
