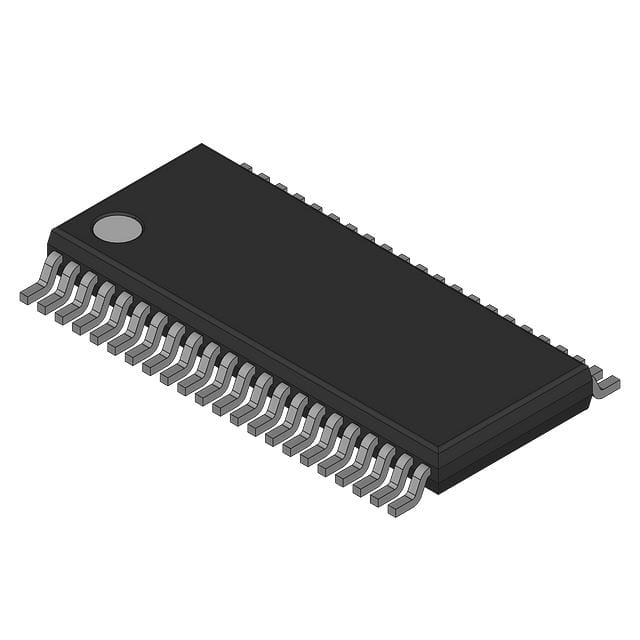

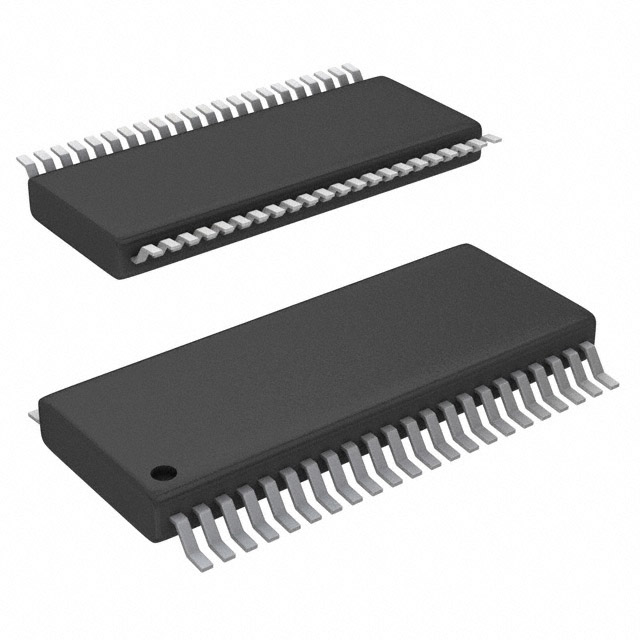

BQ20Z95DBT

TEXAS INSTRUMENTS  BQ20Z95DBT  芯片, 电量检测计, 带阻抗跟踪, 44TSSOP

The is a SBS v1.1 compliant Gas Gauge with Impedance Track™ technology. It measures and maintains an accurate record of available charge in Li-ion or Li-polymer batteries using its integrated high-performance analog peripherals, monitors capacity change, battery impedance, open-circuit voltage and other critical parameters of the battery pack as well and reports the information to the system host controller over a serial-communication bus. Together with the integrated analog front-end AFE short-circuit and overload protection, it maximizes functionality and safety while minimizing external component count, cost and size in smart battery circuits. The implemented Impedance Track™ gas gauging technology continuously analyzes the battery impedance, resulting in superior gas-gauging accuracy. This enables remaining capacity to be calculated with discharge rate, temperature and cell aging all accounted for during each stage of every cycle with high accuracy.

.

Better than 1% error over lifetime of the battery

.

Powerful 8-bit RISC CPU with ultra-low power modes

.

Supports SHA-1 authentication

.

Green product and no Sb/Br
