BB600

Breakout电子板, Laird DVK-BL600 开发电子板

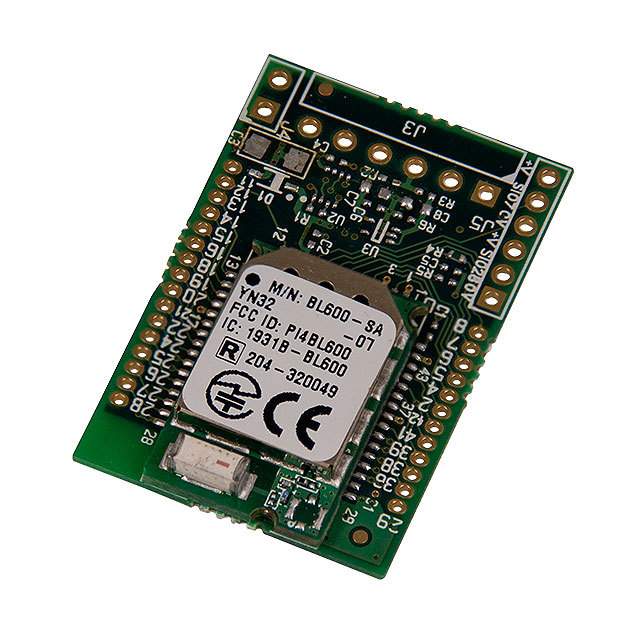

The is a BL600 basic breakout board and pin based power supply which can access to I/O via through holes. This breakout board has the required BL600-07 module soldered on and it exposes all available hardware interfaces. It is most cost-efficient access to the full BL600. It has analogue input sensing with optional resistive divider R4 and R5 to scale down external voltages to below BL600-07 series modules ADC pin maximum.

.

Dimensions of breakout board PCB is 33mm x 22mm x 0.8mm ±0.1mm

.

28 PTH via holes pitch 1.27mm bringing out BL600-07 module SIO pins
