与库仑计数器和闪存高性能电池监控器 HIGH-PERFORMANCE BATTERY MONITOR WITH COLOUMB COUNTER AND FLASH MEMORY
This smart battery monitoring charge controller from Texas Instruments protects your batteries from operating outside its safe operating area. Its output produces a current of 5Max mA. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 2.8 V and a maximum of 5.5 V. This battery gauge has an operating temperature range of -20 °C to 70 °C.
电源电压DC 2.80V min
输出电流 5 mA
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 2.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.8 V
安装方式 Surface Mount
引脚数 8

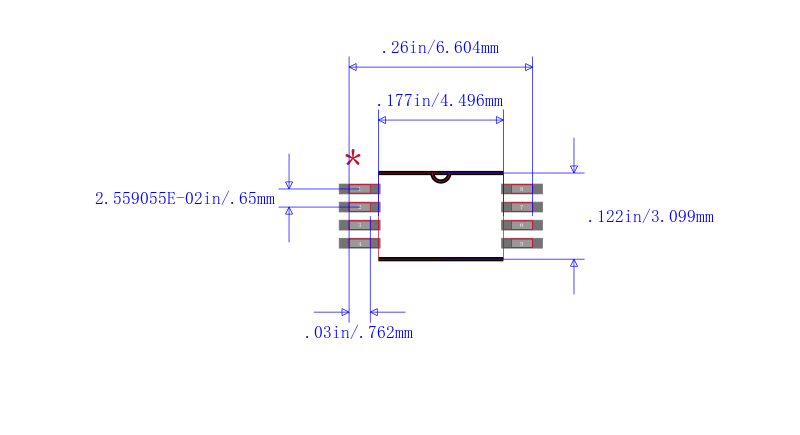

封装 TSSOP-8
长度 3 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-8
工作温度 -20℃ ~ 70℃
产品生命周期 Not Recommended for New Designs
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ26200PW TI 德州仪器 | 当前型号 | 当前型号 |
BQ26200PWR 德州仪器 | 完全替代 | BQ26200PW和BQ26200PWR的区别 |
BQ26200PWRG4 德州仪器 | 完全替代 | BQ26200PW和BQ26200PWRG4的区别 |
BQ26200PWG4 德州仪器 | 完全替代 | BQ26200PW和BQ26200PWG4的区别 |
