BQ20Z75DBT

SBS 1.1标准的电量监测计和保护，使能IC采用Impedance Track SBS 1.1-COMPLIANT GAS GAUGE AND PROTECTION-ENABLED IC WITH IMPEDANCE TRACK

DESCRIPON

The bq20z75-V180 SBS-compliant gas gauge and protection IC is a single IC solution designed for battery-pack or in-system installation. The bq20z75-V180 measures and maintains an accurate record of available charge in Li-ion or Li-polymer batteries using its integrated high-performance analog peripherals, monitors capacity change, battery impedance, open-circuit voltage, and other critical parameters of the battery pack as well and reports the information to the system host controller over a serial-communication bus. Together with the integrated analog front-end AFE short-circuit and overload protection the bq20z75-V180 maximizes functionality, safety and minimize external component count, cost and size in smart battery circuits.

FEATURES

• Next Generation Patented Impedance Track™

   Technology accurately Measures Available

   Charge in Li-Ion and Li-Polymer Batteries

      – Better than 1% Error Over Lifetime of the Battery

      – Instant Accuracy – No Learning Cycle Required

• Supports the Smart Battery Specification SBS V1.1

• Flexible Configuration for 2 to 4 Series Li-Ion and Li-Polymer Cells

• Powerful 8-Bit RISC CPU With Ultra-Low Power Modes

• Full Array of Programmable Protection Features

   – Voltage, Current and Temperature

• Supports SHA-1 Authentication

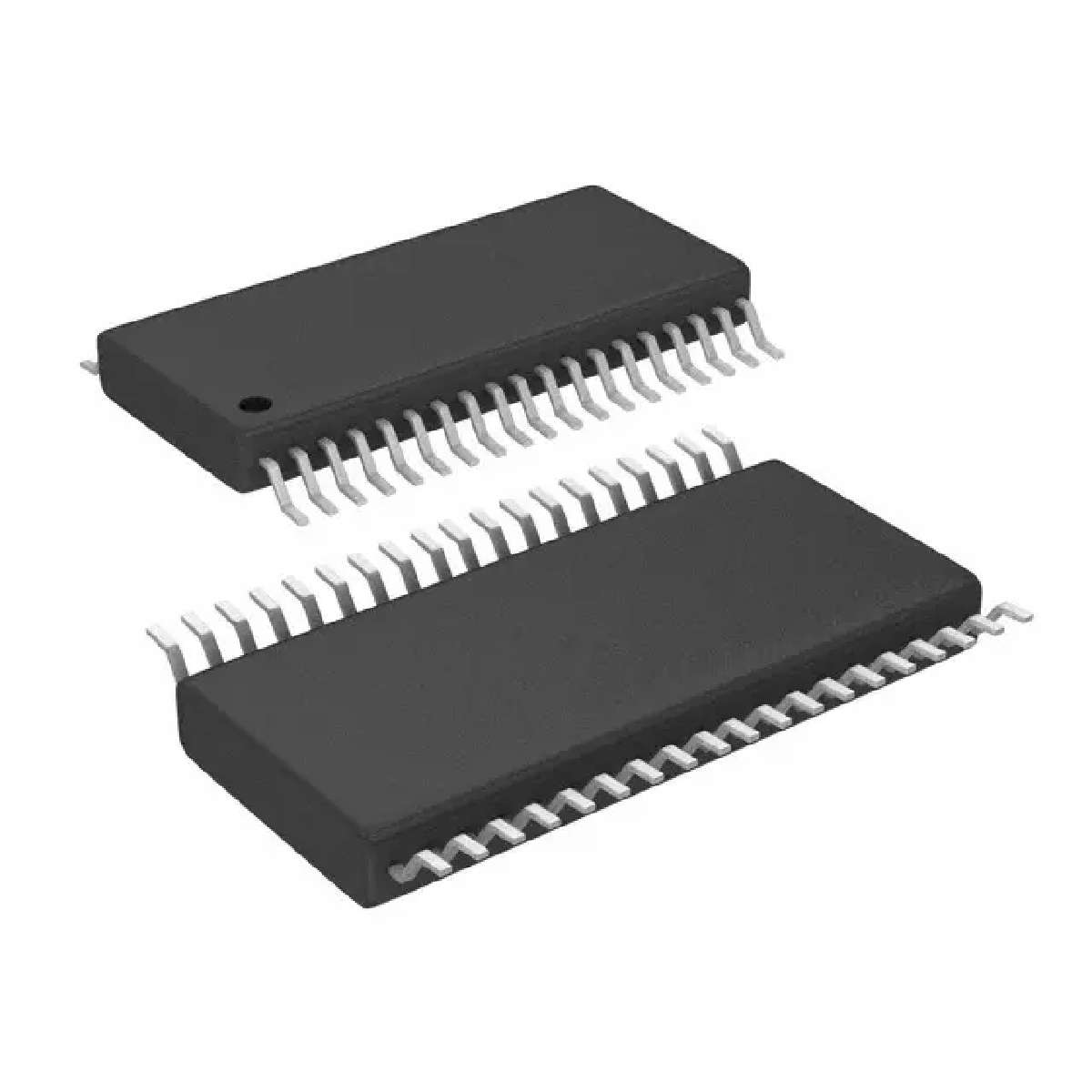

• small 38-Pin TSSOP DBT Package

APPLICATIONS

• Notebook PCs

• Medical and Test Equipment

• Portable Instrumentation
