SBS 1.1标准的电量监测计和保护 SBS 1.1-COMPLIANT GAS GAUGE AND PROTECTION
The is a SBS v1.1 compliant Gas Gauge with LED/LCD drive and Impedance Track™ technology designed for battery-pack or in-system installation. The BQ20Z655-R1 measures and maintains an accurate record of available charge in Li-ion or Li-polymer batteries using its integrated high-performance analog peripherals. The gauge monitors capacity change, battery impedance, open-circuit voltage and other critical parameters of the battery pack which reports the information to the system host controller over a serial-communication bus. Together with the integrated analog front-end AFE short circuit and overload protection, it maximizes functionality and safety while minimizing external component count, cost and size in smart battery circuits. The implemented Impedance Track™ gas gauging technology continuously analyzes the battery impedance, resulting in superior gas-gauging accuracy.
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
电源电压DC 4.50V min
输出电压 0V ~ 25V
针脚数 44
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 25 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 44

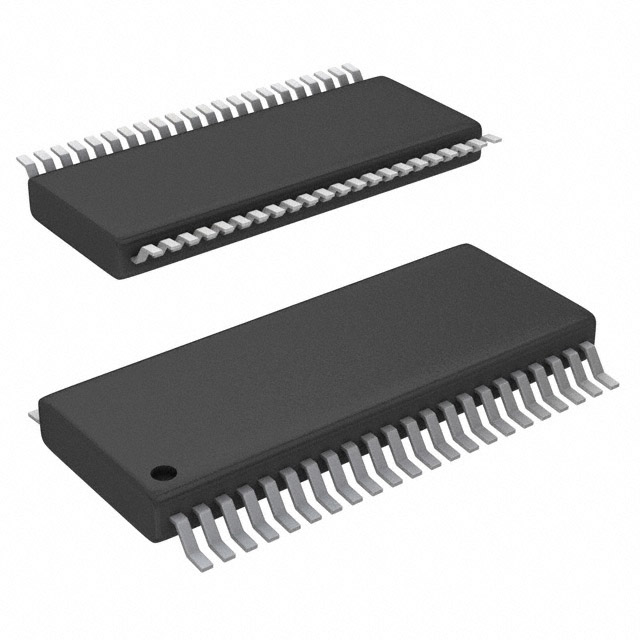

封装 TSSOP-44
封装 TSSOP-44
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 医用, 测试与测量, 工业, 便携式器材, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BQ20Z655DBT-R1 TI 德州仪器 | 当前型号 | 当前型号 |
BQ20Z655DBTR-R1 德州仪器 | 完全替代 | BQ20Z655DBT-R1和BQ20Z655DBTR-R1的区别 |
