0.9mm 至 15.1mm 的多种电缆和电线结构。焊接套管可提供绝缘的环境密封；应力释放焊接连接 温度范围：-55°C 至 +125°C 端接裸线或镀锡导线 提供带锁定盖的储物盒 提供补充装 - 参见焊接套管和其它的高规格焊接套管和线对线接合 套件内容（尺寸：mm） --- **部件号** | **数量** | **库存号** | **电缆尺寸最大值** | **最小高度** B-155-3801 | 20 | 542-5599 | 1.5 | 0.76 B-155-3802 | 20 | 542-5612 | 1.95 | 1.1 B-155-03 | 20 | 542-5690 | 3.0 | 1.5 B-155- 05 | 20 | 542-5707 | 4.8 | 2.0 B-155-07 | 20 | 542-5713 | 7.3 | 3.3 B-155-11 | 10 | 542-5729 | 11.5 | 4.5 B-155-13 | 6 | 542-5735 | 15.1 | 7.0 ### 焊接套管和热收缩接头

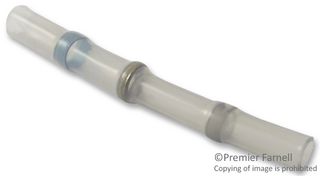

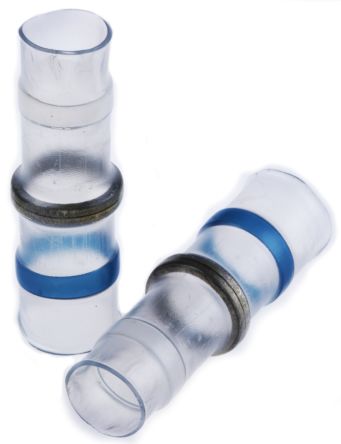

**Solder Sleeves and Kit**
The Solder Sleeve introduction kit contains various solder sleeves suitable for terminating a wide range of cable and wire constructions from 0.9mm to 15.1mm.
欧时:
焊接套管和套件焊接套管介绍套件包括各种焊接套管，适合端接 0.9mm 至 15.1mm 的多种电缆和电线结构。焊接套管可提供绝缘的环境密封；应力释放焊接连接 温度范围：-55°C 至 +125°C 端接裸线或镀锡导线 提供带锁定盖的储物盒 提供补充装 - 参见焊接套管和其它的高规格焊接套管和线对线接合套件内容（尺寸：mm） --- **部件号** | **数量** | **库存号** | **电缆尺寸最大值** | **最小高度** B-155-3801 | 20 | 542-5599 | 1.5 | 0.76 B-155-3802 | 20 | 542-5612 | 1.95 | 1.1 B-155-03 | 20 | 542-5690 | 3.0 | 1.5 B-155- 05 | 20 | 542-5707 | 4.8 | 2.0 B-155-07 | 20 | 542-5713 | 7.3 | 3.3 B-155-11 | 10 | 542-5729 | 11.5 | 4.5 B-155-13 | 6 | 542-5735 | 15.1 | 7.0
e络盟:
焊接套管, 8.7MM, 50/盒
艾睿:
Cable Accessories Solder Sleeve One Step Shield Terminator Cross-Linked Polyolefin Transparent Clear
Allied Electronics:
Transparent Polyolefin Solder Sleeve; 3.7 to 8.7mm Cable Dia; 0.042m Sleeve Length
Chip1Stop:
Cable Accessories Solder Sleeve One Step Shield Terminator Cross-Linked Polyolefin Transparent Clear
Verical:
Connector Terminals Solder Sleeve Cross-Linked Polyolefin Transparent Clear
MASTER:
Connector Terminals Solder Sleeve Cross-Linked Polyolefin Transparent Clear
Electro Sonic:
Connector Terminals Solder Sleeve Cross-Linked Polyolefin Transparent Clear
