●General Description
ROHM’s BU42xx and BU43xx series are CMOS Voltage Detector ICs with adjustable output delay. It is a
high-accuracy, low current consumption Voltage Detector IC series with a built-in delay circuit. The lineup was established with two output types Nch open drain and CMOS output and detection voltages range from 0.9V to 4.8V in increments of 0.1V, so that the series may be selected according to application.
●Features
Delay Time Controlled by external Capacitor
Two output types Nch open drain and CMOS output
Ultra-low current consumption
Wide operating temperature range
Very small and low height package

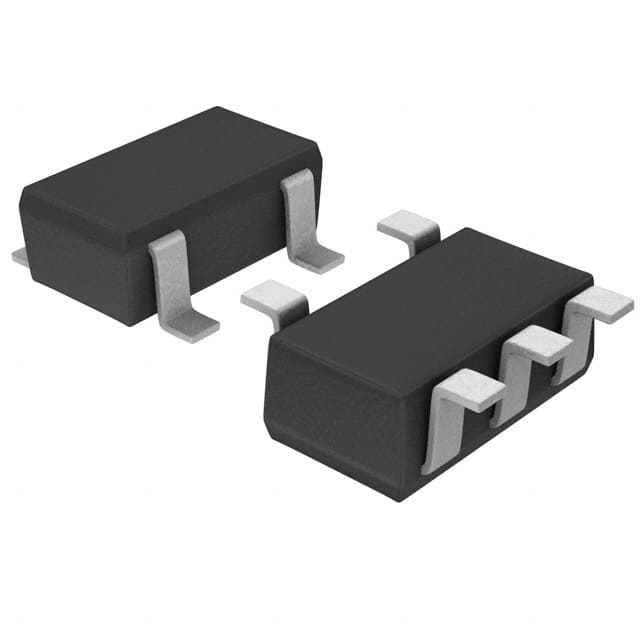

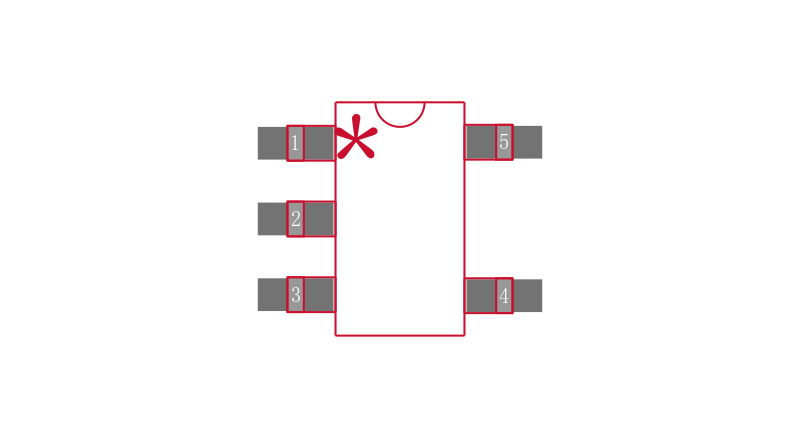

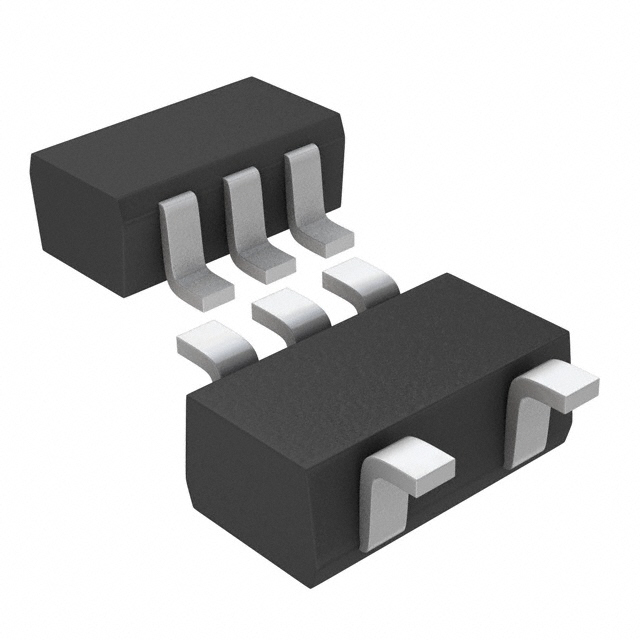

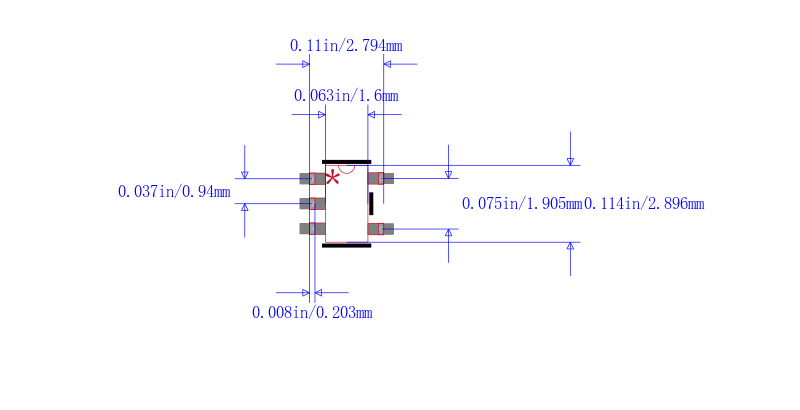

Package SSOP5 and SOP4 is similar to SOT-23-5 and SC-82 respectively JEDEC
●Applications
Circuits using microcontrollers or logic circuits that require a reset.
