B41550E7229Q000

EPCOS  B41550E7229Q000  铝电解电容, 长寿命, B41550系列, 22000 µF, +30%, -10%, 40 V, 51.6 mm, 0.006 ohm

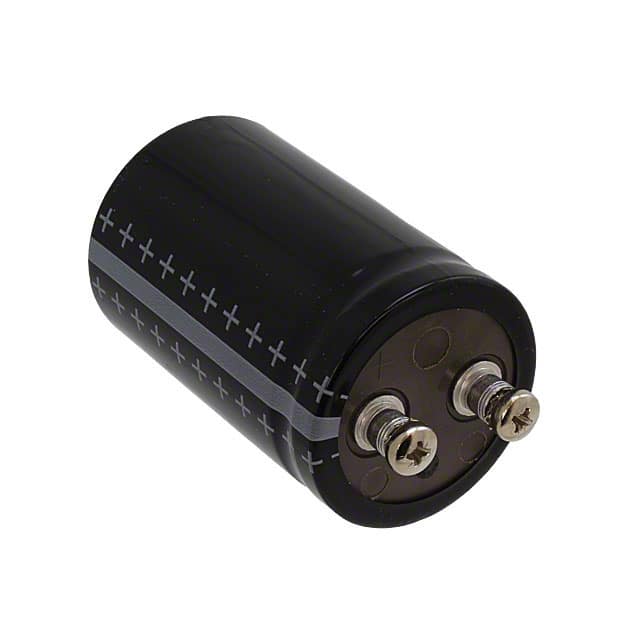

The B41550 series long life grade Aluminium Electrolytic Capacitor encapsulated in an aluminium case with insulation sleeve. It has poles with screw terminal connections and mounting with ring clips, clamps or threaded stud. The bases of types with threaded stud are not insulated. It features outstanding reliability, long useful life and high ripple current capability. It is used in highly professional power supplies.

.

Charge-discharge proof, polar

.

All-welded construction ensures reliable electrical contact

.

Operation at temperatures up to 125°C permissible without insulating sleeve

.

Shelf life up to 10 years

.

16 to 100VDC Rated voltage range

.

1500 to 220000µF Rated capacitance range
