RF and Baseband Circuit, PDSO6, 2 X 1.3MM, 0.39MM HEIGHT, GREEN, TSNP-7/6
Summary of Features:
-
.
-
Gain: 15.5 / -10 dB in high / low gain mode
-
.
-
Noise figure: 1.1 dB in high gain mode
-
.
-
Supply current: 4.8 / 0.5 mA in high / low gain mode
-
.
-
Standby mode < 2 μA typ.
-
.
-
Output internally matched to 50 Ω
-
.
-
Inputs pre-matched to 50 Ω
-
.
-
2 kV HBM ESD protection
-
.
-
Low external component count
-
.
-

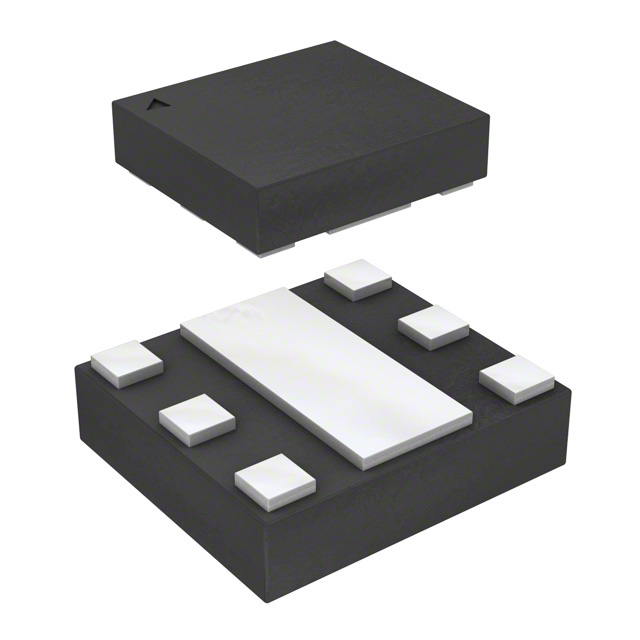

Small leadlessTSNP-7-1 / TSNP-7-2 packages 2.0 x 1.3 x 0.39 mm
-
.
-
Pb-free RoHS compliant package
