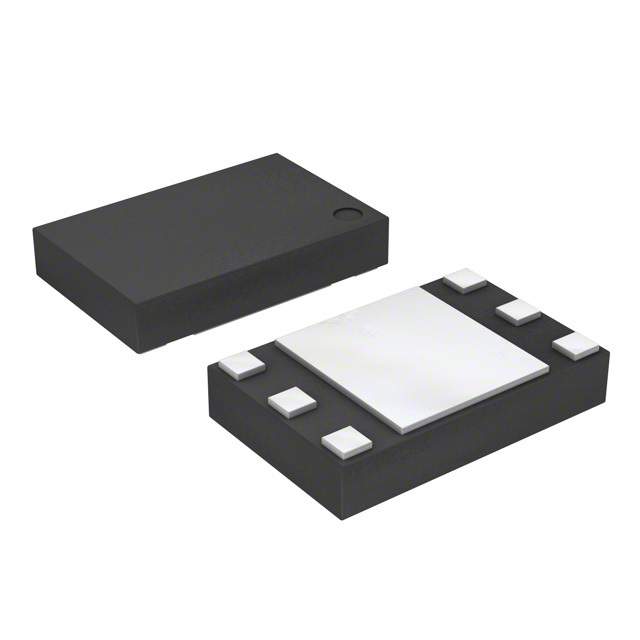

BGA622L7E6327XTSA1

RF Amplifier IC 802.15/Bluetooth, ISM, WLAN, GSM, GPS, DCS, UMTS 500MHz ~ 6GHz TSLP-7-1

Description:

The BGA622L7 is a wide band low noise amplifier, based on Technologies’ Silicon Germanium Technology B7HF. The out-pin is simultaneously used for RF out and On/Off switch. This functionality can be accessed using a RF-Choke at the Out pin, where a DC level of 0 V or an open switches the device on and a DC level of VCC switches off, it provides an insertion loss of 26 dB together with a high IIP3 up to 24 dBm at GPS frequencies.

Summary of Features:

.

Gain: 17 / -8 dB in high / low gain mode

.

Noise figure: 1.1 dB in high gain mode

.

Supply current: 3.6 / 0.5 mA in high / low gain mode

.

Standby mode < 2 μA typ.

.

Output internally matched to 50 Ω

.

Inputs pre-matched to 50 Ω

.

2 kV HBM ESD protection

.

Low external component count

.

Small leadless TSNP-7-1 / TSNP-7-2 packages 2.0 x 1.3 x 0.39 mm

.

Pb-free RoHS compliant package
