BRBLU03-101A0-03概述

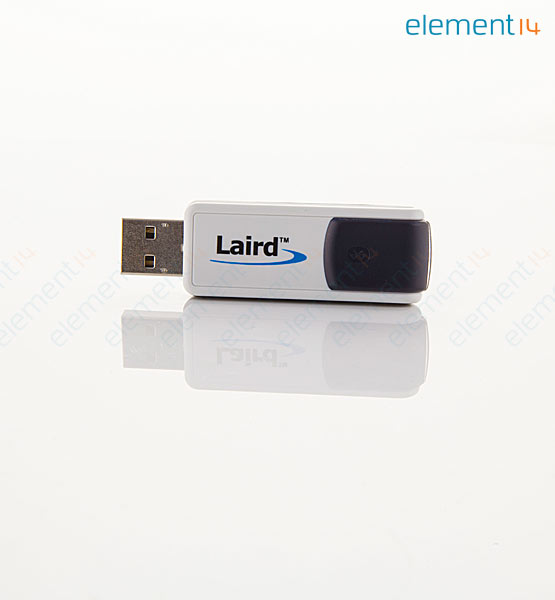

LAIRD TECHNOLOGIES  BRBLU03-101A0-03  适配器, 蓝牙, USB, 1级

BRBLU03-101A0-02 is a EZURiO range of Professional Bluetooth products and is the world"s first Bluetooth USB adapter that has been designed specifically to deliver the high data rates of modern technology. Designed with the most advanced Bluetooth features in a product that has been engineered to ensure the highest quality and reliability. This is a professional product designed for system critical use where robustness and reliability are critical. Power is a key performance indicator. The EZURiO professional range has a highly optimised radio that works at an extended range at around 10% of the power consumption of other Bluetooth solutions. This unprecedented power control ensures that user products work for longer. The USB adapter contains a fully compliant Bluetooth HCI interface enabling it to run with any approved Bluetooth protocol stack. With Microsoft Windows XP SP2 and Windows CE this is truly plug and play.

.
Best in class range, providing open field connectivity in excess of 300m
.
Adaptive Frequency hopping to cope with interference from other wireless products
.
A full industrial operating temperature range
.
Automatic high speed performance with data rate up to 3Mbps
.
Supports extended SCO to provide the highest quality voice communications
.
Optimised receive sensitivity to provide long range initial connections eliminate hysterisis
.
Low power
.
Full support of Authentication and Encryption
.
Full 16 alphanumeric character PIN codes
.
Combination keys
BRBLU03-101A0-03中文资料参数规格
技术参数

电源电压DC 3.30V max

数据速率 3.00 Mbps

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压Max 3.3 V

物理参数

工作温度 -40℃ ~ 85℃

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

数据手册

在线购买BRBLU03-101A0-03
型号: BRBLU03-101A0-03
制造商: Laird Technologies 莱尔德
描述:LAIRD TECHNOLOGIES  BRBLU03-101A0-03  适配器, 蓝牙, USB, 1级
