BU18SD2MG-MTR

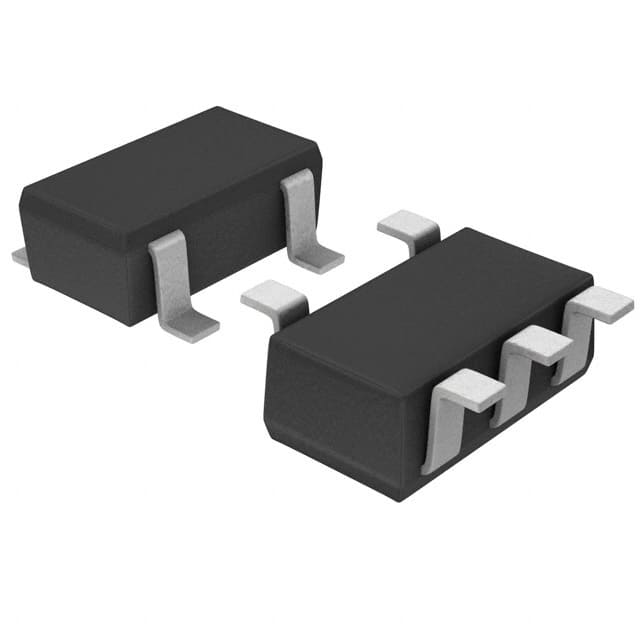

ROHM  BU18SD2MG-MTR  LDO稳压器 -固定, 1.7V-6V输入, 1.8Vnom/200 mA输出, SSOP-5 新

The is a single channel 200mA CMOS LDO regulator for automotive equipments in 5 pin SSOP package. This high performance device has an excellent noise and load response characteristics despite of its low circuit current consumption of 33µA. It is most appropriate for various applications such as power supplies for logic IC, RF and camera modules.

.

Input power supply voltage range from 1.7V to 6V

.

Output voltage of 1.8V

.

Output voltage accuracy is ±2%

.

High ripple rejection of 68dB typ, 1KHz

.

Compatible with small ceramic capacitor cin=cout=0.47µF

.

Output voltage ON/OFF control

.

Built-in over current protection circuit OCP

.

Built-in thermal shutdown circuit TSD

.

Operating temperature range from -40°C to +105°C

ESD sensitive device, take proper precaution while handling the device.
