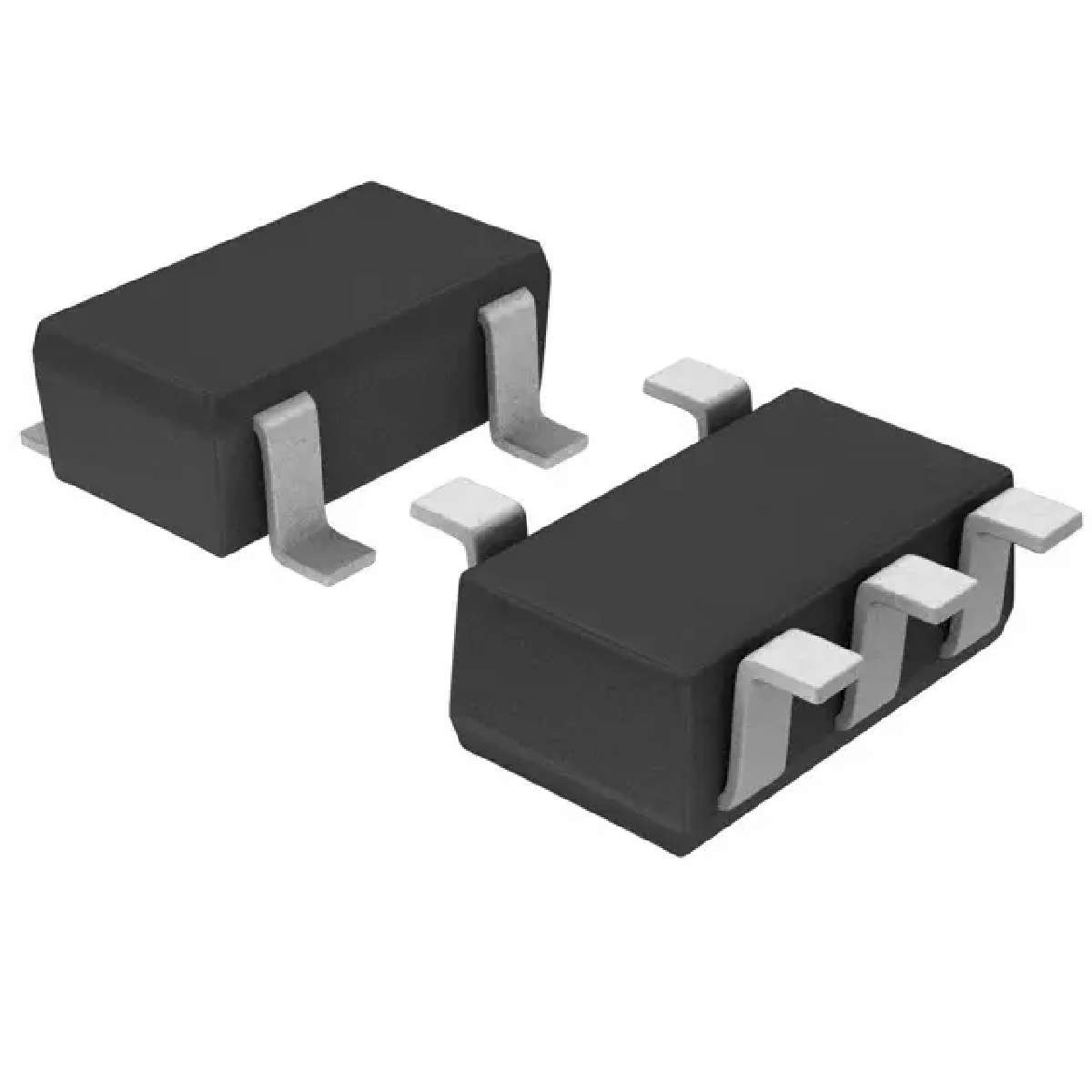

ROHM BU30SD2MG-MTR 固定电压稳压器, LDO, 1.7V至6V, 85mV压差, 3V输出, 200mA输出, SSOP-5
The is a single channel 200mA CMOS LDO regulator for automotive equipments in 5 pin SSOP package. This high performance device has an excellent noise and load response characteristics despite of its low circuit current consumption of 33µA. It is most appropriate for various applications such as power supplies for logic IC, RF and camera modules.
ESD sensitive device, take proper precaution while handling the device.
输出接口数 1
输出电压 3 V
输出电流 200 mA
供电电流 80 µA
针脚数 5
耗散功率 540 mW
跌落电压 85 mV
输入电压Max 6 V
输入电压Min 1.7 V
输出电压Min 3 V
输出电流Max 0.2 A
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 540 mW
精度 ±2 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 5
封装 SSOP-753
封装 SSOP-753
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Automotive, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BU30SD2MG-MTR ROHM Semiconductor 罗姆半导体 | 当前型号 | 当前型号 |
BU28SD2MG-MTR 罗姆半导体 | 类似代替 | BU30SD2MG-MTR和BU28SD2MG-MTR的区别 |
LP5907MFX-3.3/NOPB 德州仪器 | 功能相似 | BU30SD2MG-MTR和LP5907MFX-3.3/NOPB的区别 |
