BD80GA3MEFJ-ME2

ROHM  BD80GA3MEFJ-ME2  LDO稳压器 -固定, 4.5V-14V输入, 8Vnom/300 mA输出, HTSOP-8 新

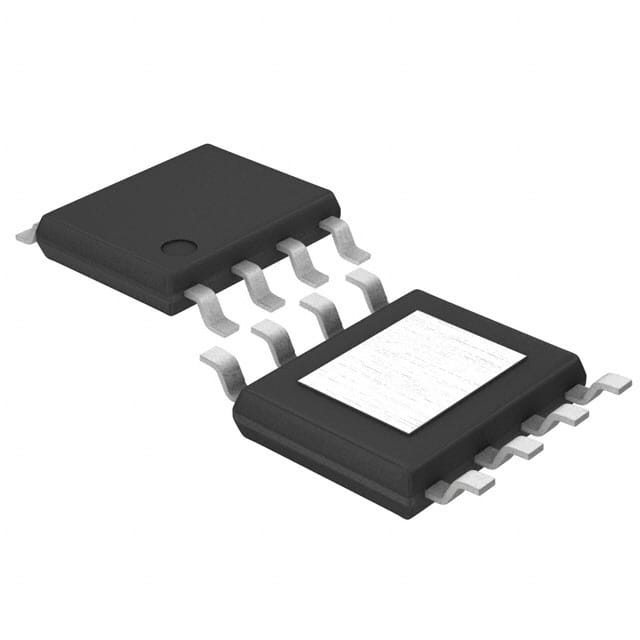

The is a 300mA, fixed output LDO regulator in 8 pin HTSOP package. This LDO regulator is built-in with thermal shutdown circuit for protecting IC from heat destruction by over load condition, circuit current ON/OFF switch for setting the circuit 0µA at shutdown mode and an over current protection for protecting the IC destruction by output short circuit. It is usable for ceramic capacitor and enables to improve smaller set and long life.

.

Input power supply voltage range from 4.5V to 14V

.

Output voltage of 8V

.

Automotive grade AEC-Q100 qualified

.

Operating temperature range from -40°C to +105°C

.

High accuracy reference voltage circuit

.

Built-in over current protection circuit OCP

.

Dropout voltage Vdo of 600mV

.

Maximum line regulation is 50mV at 25°C

.

Maximum load regulation is 75mV at 25°C

This product is electrostatic sensitive product and it may be damaged due to electrostatic discharge. Please take proper caution.

The residue of flux may negatively affect product performance and reliability when highly active halogenous chlorine, bromine etc flux is used.
