BDJ2GC0MEFJ-ME2

ROHM  BDJ2GC0MEFJ-ME2  LDO稳压器 -固定, 4.5V-14V输入, 12Vnom/1 A输出, HTSOP-8 新

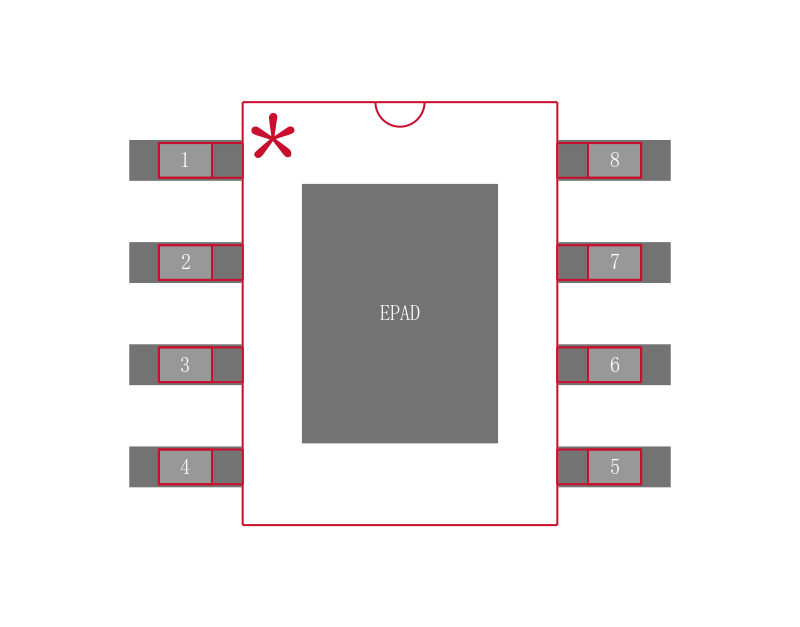

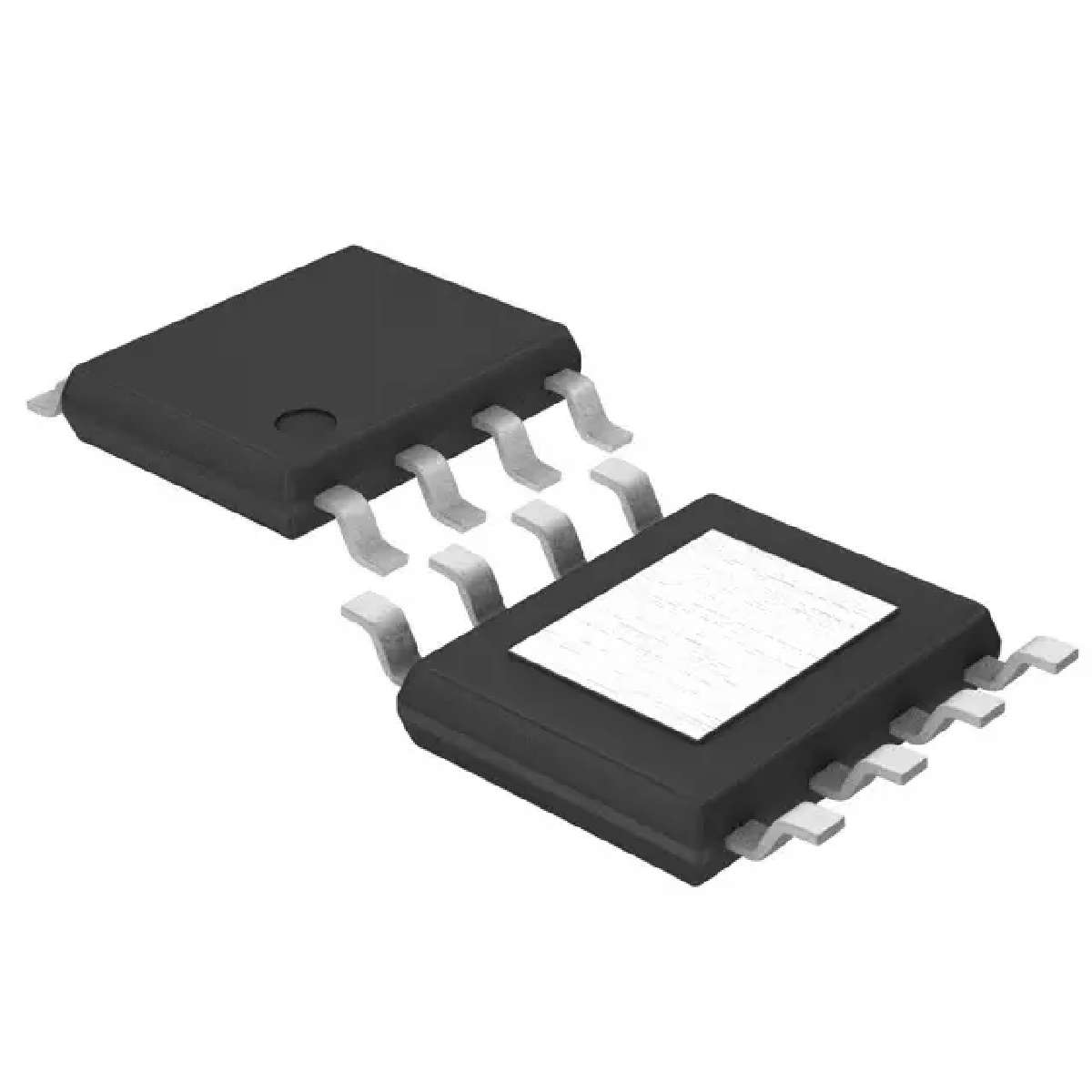

The is a fixed output low dropout LDO voltage regulator in 8 pin HTSOP package. The output accuracy is ±1% of output voltage. It has built-in overcurrent protection for protecting the IC destruction by output short circuit, circuit current ON/OFF switch for setting the circuit 0µA at shutdown mode and thermal shutdown circuit for protecting IC from heat destruction by overload condition. The device is usable for ceramic capacitor and enables to improve smaller set and long life.

.

Fixed output voltage from 12V

.

Output current of 1A

.

Automotive grade AEC-Q100 qualified

.

Input power supply voltage range from 4.5V to 14V and enable EN voltage range from 0V to 14V

.

Minimum dropout voltage of 0.6V at TA = 25°C VCC=5V, IO=1A

.

High accuracy reference voltage circuit

.

Bias current of 600µA at TA = 25°C

.

Line regulation of 25mV at TA = 25°C and load regulation of 25mV at TA = 25°C

.

Operating temperature range from -40°C to +105°C

ESD sensitive device, take proper precaution while handling the device.

The residue of flux may negatively affect product performance and reliability when highly active halogenous chlorine, bromine etc flux is used.
