Fixed Positive LDO Regulator, 3.3V, 0.9V Dropout, BIPolar, PSSO2, ROHS COMPLIANT, TO-252, 3Pin
LDO Regulator
Description
BD394□FP Series regulators feature a high 36 V breakdown voltage and are compatible with onboard vehicle microcontrollers. They offer an output current of 500 mA while limiting dark current to 30 µA TYP. The series supports the use of ceramic capacitors as output phase
compensation capacitors. Since the ICs use P-channel DMOS output transistors, increased loads do not result in increased total supply current. BD394□FP Series is ideal for lowering current consumption and costs in battery direct-coupled systems.
Features
1 Super-low dark current: 30 µA Typ.
2 Low-saturation voltage type P-channel DMOS output transistors
Output on resistance: 1.6 ΩTyp.
3 High precision output voltage: 5 V ±2% Ta = 25°C / Iomax = 500 mA
4 Low-ESR ceramic capacitors can be used as output capacitors
5 Vcc power supply voltage = 36 V / Peak power supply voltage = 50 V tr ≥1 ms, tH ≤200 ms
6 Built-in over current protection circuit and thermal shutdown circuit
7 TO252-3/HRP-5/TO220FP-3 package
Applications
Vehicle equipment, car stereos, satellite navigation systems, etc.
输出接口数 1
输出电压 3.3 V
输出电流 500 mA
输入电压Max 36 V
输出电流Max 500 mA
工作温度Max 125 ℃
工作温度Min 40 ℃
输入电压 4.5V ~ 25V
安装方式 Surface Mount
引脚数 3

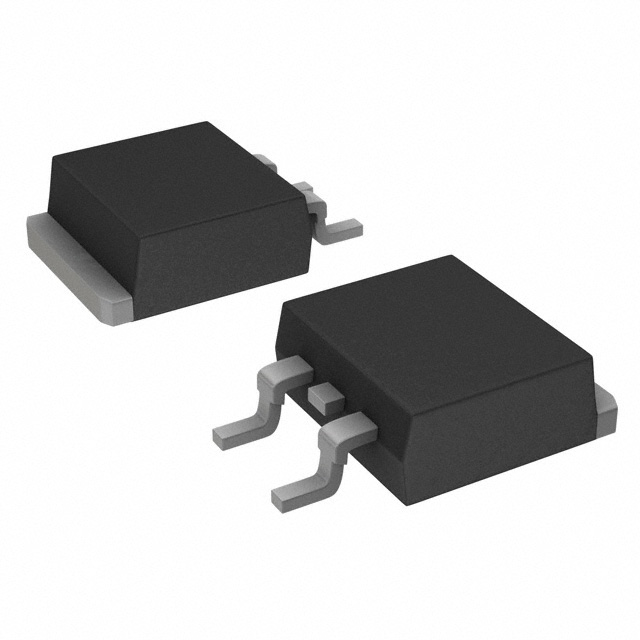

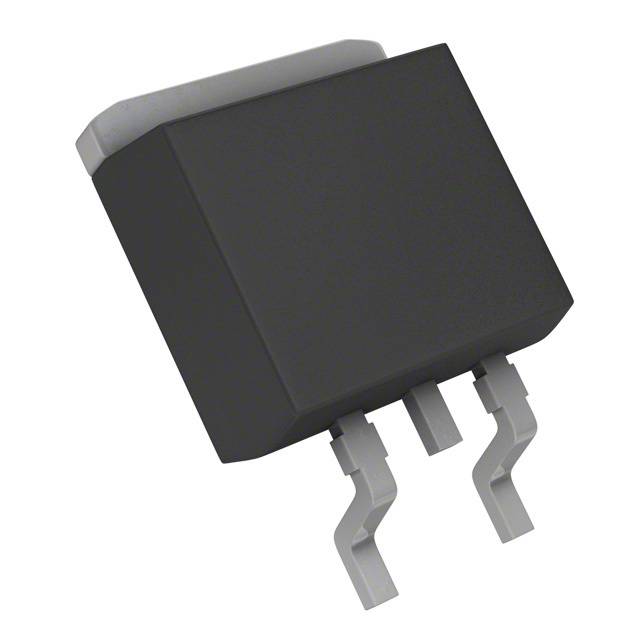

封装 TO-252-3
长度 6.5 mm
宽度 5.5 mm
高度 2.3 mm
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
