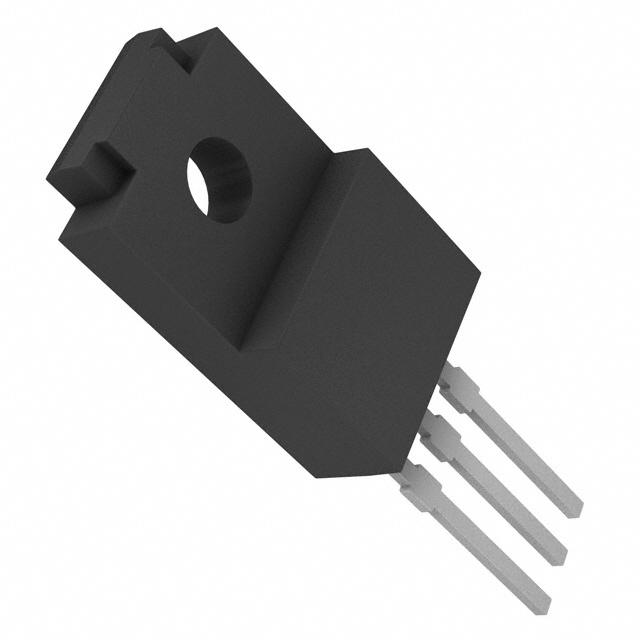

ROHM BA50DD0T 固定电压稳压器, LDO, 3V至25V, 450mV压差, 5V输出, 2A输出, TO-220FP-3
The is a fixed single-output LDO Voltage Regulator continues the trend towards increasing miniaturization and greater power efficiency and is optimized for power supplies of all types. The broad line-up includes low saturation fixed output type in 2A rating. In addition, over-current, thermal shutdown and overvoltage protection circuits are integrated to prevent IC destruction due to output shorts, IC overload and surges on the power supply line respectively.
- .
- Ultralow saturation with PNP output
- .
- ±1% Output voltage accuracy
输出接口数 1
输出电压 5 V
输出电流 2 A
针脚数 3
耗散功率 2000 mW
跌落电压 450 mV
输入电压Max 25 V
输入电压Min 3 V
输出电流Max 2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 2000 mW
精度 ±1 %
输入电压 ≤25 V
安装方式 Through Hole
引脚数 3
封装 TO-220-3
宽度 4.5 mm
封装 TO-220-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 安全, 医用, Communications & Networking, Sensing & Instrumentation, 便携式器材, 电源管理, Security, Computers & Computer Peripherals, Power Management, 传感与仪器, 通信与网络, Portable Devices, Medical, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BA50DD0T ROHM Semiconductor 罗姆半导体 | 当前型号 | 当前型号 |
BA05CC0T 罗姆半导体 | 类似代替 | BA50DD0T和BA05CC0T的区别 |
BA50BC0T 罗姆半导体 | 类似代替 | BA50DD0T和BA50BC0T的区别 |
BA50JC5T 罗姆半导体 | 类似代替 | BA50DD0T和BA50JC5T的区别 |
