ROHM BD9C401EFJ-E2 直流-直流开关降压逐步递减稳压器, 可调, 4.5V-18V输入, 800mV-800mV输出, 4A输出, HTSOP-8
The is an integrated single synchronous Buck switching regulator DC/DC Converter with built-in low on-resistance power MOSFETs. It is capable of providing current of up to 4A and is a current mode control DC/DC converter and features high-speed transient response. Phase compensation can also be set easily.
- .
- Over-current protection
- .
- Thermal shutdown protection
- .
- Under-voltage lockout protection
- .
- Short-circuit protection
- .
- Fixed soft start function 1msec
输出接口数 1
输出电压 0.5625V ~ 12.6V
输出电流 4 A
针脚数 8
开关频率 550 kHz
输入电压Max 18 V
输入电压Min 4.5 V
输出电压Max 800 mV
输出电压Min 800 mV
输出电流Max 4 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Min 4.5 V
输入电压 18 V
安装方式 Surface Mount
引脚数 8

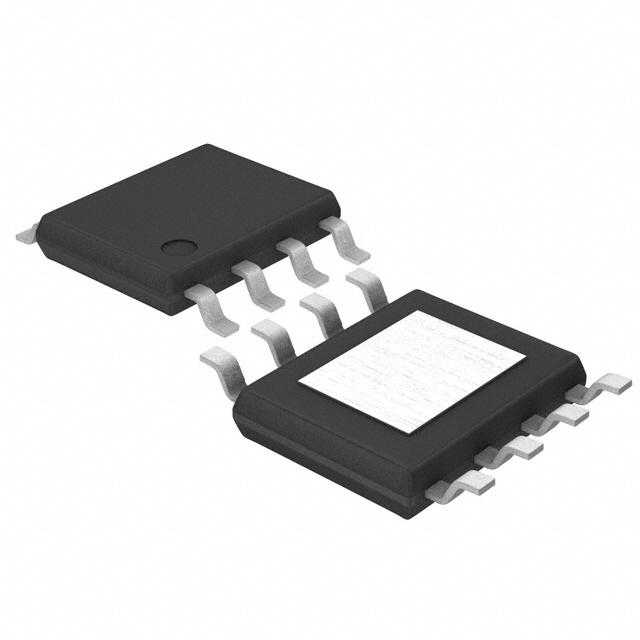

封装 HTSOP-8
高度 0.85 mm
封装 HTSOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Consumer Electronics, 消费电子产品, 计算机和计算机周边, 通信与网络, Portable Devices, Communications & Networking, 医用, Medical, Computers & Computer Peripherals, 传感与仪器, 便携式器材, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
