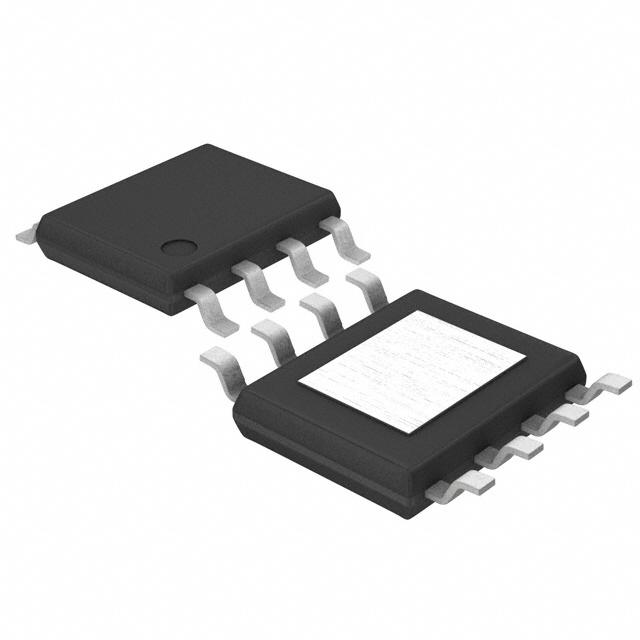

ROHM BD9C501EFJ-E2 直流-直流开关降压逐步递减稳压器, 可调, 4.5V-18V输入, 337.5mV-12.6V输出, 5A输出, HTSOP-8
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A 8-SOIC 0.154", 3.90mm Width Exposed Pad
得捷:
IC REG BUCK ADJ 5A 8HTSOP-J
立创商城:
降压型 Vin=4.5V~18V Vout=800mV~12.6V 5A
贸泽:
Switching Voltage Regulators DC/DC; BUCK 4.5-18VIN 5.0A; HT
艾睿:
Conv DC-DC 4.5V to 18V Synchronous Step Down 5A 8-Pin HTSOP-J EP T/R
安富利:
Conv DC-DC Single-OUT Step Down 4.5V to 18V 8-Pin HTSOP-J Embossed T/R
Chip1Stop:
Conv DC-DC Step Down 4.5V to 18V 8-Pin HTSOP-J EP T/R
Verical:
Conv DC-DC 4.5V to 18V Synchronous Step Down Single-Out 0.3375V to 12.6V 5A 8-Pin HTSOP-J EP T/R
Newark:
# ROHM BD9C501EFJ-E2 DC-DC Switching Buck Step Down Regulator, Adjustable, 4.5V-18Vin, 337.5mV-12.6Vout, 5Aout, HTSOP-8
DeviceMart:
IC REG BUCK SYNC ADJ 5A 8HTSOP
输出接口数 1
输出电压 0.3375V ~ 12.6V
输出电流 5 A
针脚数 8
开关频率 500 kHz
输入电压Max 18 V
输入电压Min 4.5 V
输出电压Max 12.6 V
输出电压Min 337.5 mV
输出电流Max 5 A
工作温度Max 85 ℃
工作温度Min 40 ℃
输入电压 4.5V ~ 18V
安装方式 Surface Mount
引脚数 8
封装 HTSOP-8
封装 HTSOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
