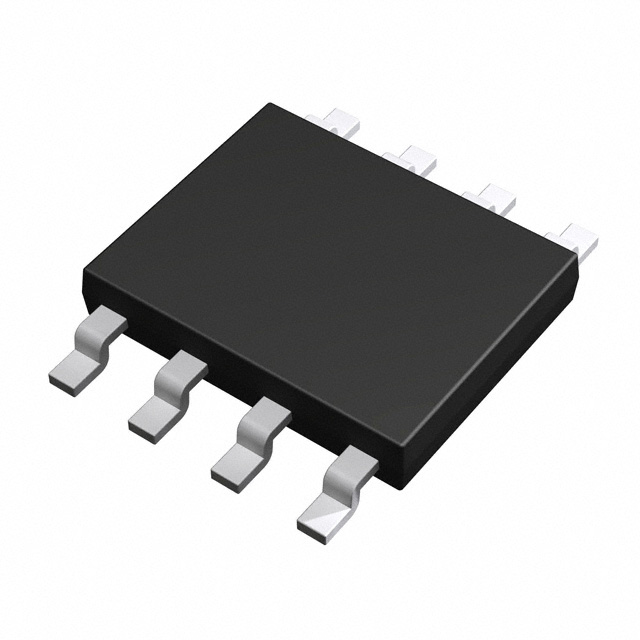

ROHM BD9106FVM-TR 直流-直流开关降压逐步递减稳压器, 可调, 4V-5.5V输入, 1V-2.5V输出, 0.8A输出, MSOP-8
●General Description
ROHM’s high efficiency step-down switching regulators BD9106FVM, BD9107FVM, BD9109FVM, BD9110NV, BD9120HFN are the power supply designed to produce a low voltage including 1 volts from 5/3.3 volts power supply line. Offers high efficiency with our original pulse skip control technology and synchronous rectifier. Employs a current mode control system to provide faster transient response to sudden change in load.
Features
Offers fast transient response with current mode PWM control system.
Offers highly efficiency for all load range with synchronous rectifier Nch/Pch FET and SLLMTM Simple Light Load Mode
Incorporates soft-start function.
Incorporates thermal protection and ULVO functions.
Incorporates short-current protection circuit with time delay function.
Incorporates shutdown function
Application
Power supply for LSI including DSP, Micro computer and ASIC
输出接口数 1
输出电压 1V ~ 2.5V
输出电流 800 mA
针脚数 8
阈值电压 3.60 V
开关频率 1 MHz
输入电压Max 5.5 V
输入电压Min 4 V
输出电压Max 2.5 V
输出电压Min 1 V
输出电流Max 0.8 A
工作温度Max 85 ℃
工作温度Min -25 ℃
电源电压 4 V
输入电压 4V ~ 5.5V
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
封装 MSOP-8
工作温度 -25℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BD9106FVM-TR ROHM Semiconductor 罗姆半导体 | 当前型号 | 当前型号 |
BD9106FVM 罗姆半导体 | 功能相似 | BD9106FVM-TR和BD9106FVM的区别 |
