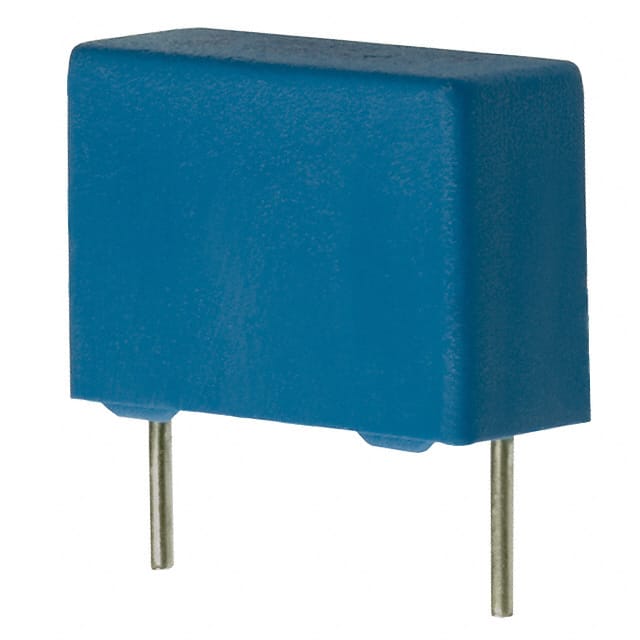

EPCOS B32652A3224J000 膜电容, B32652系列, 0.22 µF, ± 5%, PP聚丙烯, 250 V
The is a metalized polypropylene Film Capacitor with radial leaded lead-free tin-plated parallel wire lead terminals, plastic case UL94V-0 and epoxy resin sealing. The B32652 series film capacitor is suitable for electronic ballasts and high pulse wound applications.
- .
- High pulse strength
- .
- High contact reliability
- .
- Halogen-free
Do not exceed the upper category temperature UCT. Do not apply any mechanical stress to the capacitor terminals. Avoid any compressive, tensile or flexural stress.
额定电压DC 250 V
电容 0.22 µF
容差 ±5 %
易燃性等级 UL 94 V-0
工作温度Max 100 ℃
工作温度Min -55 ℃
额定电压 250 V
安装方式 Through Hole
引脚数 2
封装 -
引脚间距 15 mm
高度 11 mm
封装 -
引脚间距 15 mm
介质材料 Polypropylene
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
B32652A3224J000 Epcos 爱普科斯 | 当前型号 | 当前型号 |
B32652A3224J 爱普科斯 | 完全替代 | B32652A3224J000和B32652A3224J的区别 |
MKP1F032204D00JSSD WIMA | 完全替代 | B32652A3224J000和MKP1F032204D00JSSD的区别 |
MKP1840422254 威世 | 类似代替 | B32652A3224J000和MKP1840422254的区别 |
