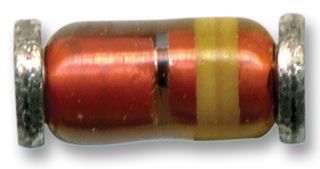

BZV55-C12

NXP  BZV55-C12  单管二极管 齐纳, 12 V, 500 mW, SOD-80C, 5 %, 2 引脚, 200 °C

The BZV55 series from are surface mount low power voltage regulator diodes which are hermetically sealed in SOD80C package. The device features non repetitive peak reverse power dissipation

.

Wide working voltage range from 2.4V to 75V E24 range

.

Total power dissipation of 400mW at Tamb

.

Operating junction temperature range from -65°C to 200°C

.

Available in ±2% and ±5% tolerance

.

Forward current of 250mA

.

Maximum forward voltage VF of 900mV at IF 10mA
