BPW41N

VISHAY  BPW41N  光电二极管, IR滤波

940nm - 130° 径向，侧视图

得捷:
PHOTODIODE 790 TO 1050 NM

欧时:

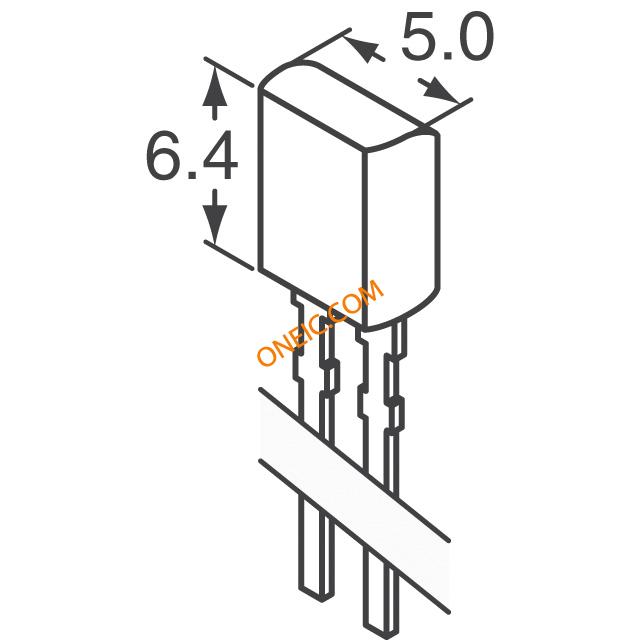

### BPW41N Series PIN PhotodiodesThe BPW41N series, from Vishay Semiconductor, are a family of silicon PIN photodiodes. They are in a side looking SL package with a black plastic lens and daylight filter. Suitable applications for the BPW41N include; IR radiation detectors, IR remote control and air data transmission systems. The BPW41N can be used in combination with the TSAL series IR emitters. Features of the BPW41N PIN photodiode: Side-looking black plastic package Through-hole mouting Dimensions: 5 x 4 x 6.8 mm Radiant sensitive area: 7.5 mm² High radiant sensitivity Fast response times Angle of half intensity: 65° Operating temperature: -40 to +100°C ### IR 光电二极管，Vishay Semiconductor

e络盟:
VISHAY  BPW41N..  光电二极管

艾睿:
Photodiode PIN Chip 950nm 2-Pin Side View Bulk

富昌:
BPW41N 系列 65° 侧视 950 nm 插针 光电二极管

TME:
Photodiode; 130°; 925nm; 7.5mm2; THT

Verical:
Photodiode PIN Chip 950nm 2-Pin Side View Bulk

Newark:
# VISHAY  BPW41N  Photodiode, 65 °, 2 nA, 950 nm, Radial Leaded-2

AMEYA360:
PHOTODIODE PIN FLAT SIDE VIEW
