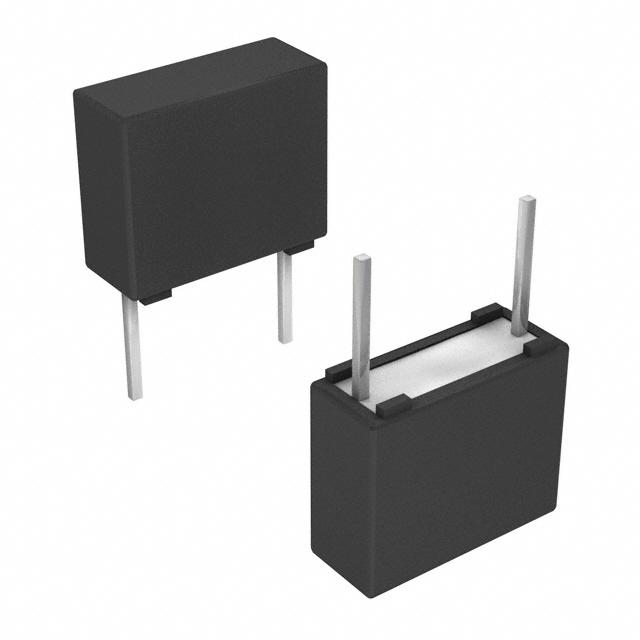

VISHAY BFC233820102 膜电容, MKP3382 X2系列, 1000 pF, ± 20%, X2, 径向引线, 105 °C
The Vishay MKP3382 X2 series are radial leaded, interference suppression film capacitors. The capacitance range includes E12 decade values from 0.001µF to 3.3µF. These film capacitors are non polarized electrical capacitors with an insulated Polypropylene film as dielectric.
- .
- 7.5mm to 27.5mm lead pitch
- .
- ±20%, ±10% and ±5% tolerance
- .
- Rated AC voltage of 310V
- .
- Rated DC voltage of 800V at 85°C and 630V at 110°C
- .
- Meets IEC 60384-14-3, EN60384-14, IEC 60065, UL 60384-14, CSA-E384-14, CQC standards
- .
- Flame retardant plastic case and epoxy resin coated with tinned wire
额定电压DC 630 V
额定电压AC 440 V
电容 1000 pF
容差 ±20 %
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚数 2
封装 Radial, Box
引脚间距 7.5 mm
长度 10 mm
宽度 4 mm
高度 9 mm
脚长度 3.5 mm
封装 Radial, Box
引脚间距 7.5 mm
工作温度 -55℃ ~ 110℃
包装方式 Each
制造应用 消费电子产品, Portable Devices, 便携式器材, Industrial, Power Management, 工业, Consumer Electronics, EMI, RFI 抑制, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BFC233820102 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
BFC233826102 威世 | 类似代替 | BFC233820102和BFC233826102的区别 |
