NXP BUK9226-75A,118 晶体管, MOSFET, N沟道, 45 A, 75 V, 20.9 mohm, 10 V, 1.5 V
The is a N-channel enhancement-mode logic level FET in a plastic package using TrenchMOS® technology. The device has been designed and qualified to the appropriate AEC-Q101 standard for use in automotive critical applications.
- .
- Low conduction losses due to low ON-state resistance
- .
- Suitable for logic level gate drive sources
- .
- Suitable for thermally demanding environments due to 175°C rating
- .
- -55 to 175°C Junction temperature range
针脚数 3
漏源极电阻 0.0209 Ω
极性 N-Channel
耗散功率 114 W
阈值电压 1.5 V
漏源极电压Vds 75 V
连续漏极电流Ids 45.0 A
上升时间 141 ns
输入电容Ciss 3120pF @25VVds
额定功率Max 114 W
下降时间 108 ns
工作温度Max 175 ℃
耗散功率Max 114W Tc
安装方式 Surface Mount
引脚数 3

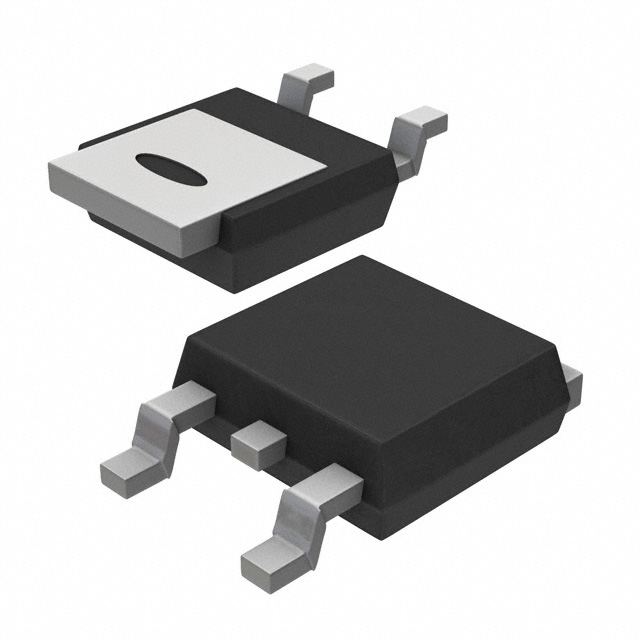

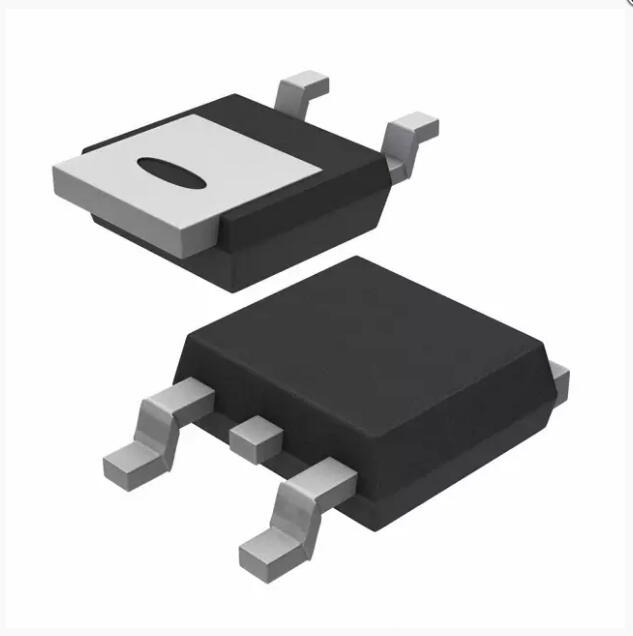

封装 TO-252-3
封装 TO-252-3
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Motor Drive & Control, Automotive, Lighting, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BUK9226-75A,118 NXP 恩智浦 | 当前型号 | 当前型号 |
BUK7226-75A,118 恩智浦 | 类似代替 | BUK9226-75A,118和BUK7226-75A,118的区别 |
SUD40N08-16-E3 威世 | 功能相似 | BUK9226-75A,118和SUD40N08-16-E3的区别 |
