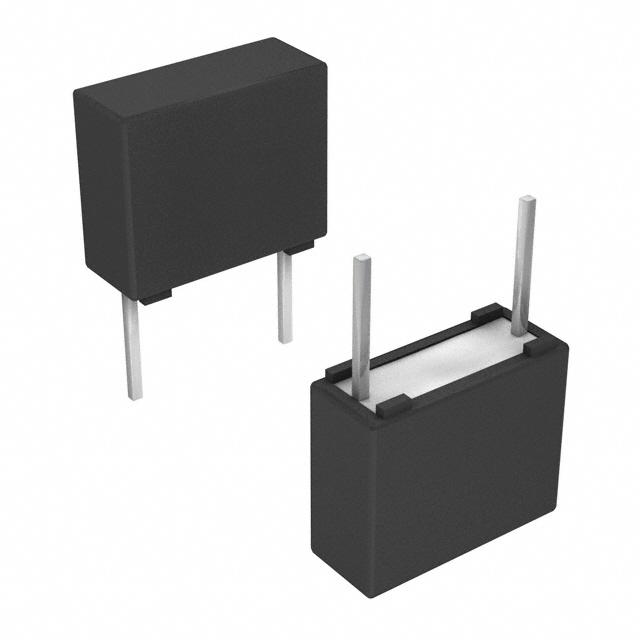

VISHAY BFC237021683 膜电容, MKT370系列, 0.068 µF, ± 10%, PET聚酯, 100 V
The Vishay MKT370 capacitors are radial leaded, metalized polyester DC film capacitors with 5.08mm pitch spacing. The capacitance range includes E12 decade values from 0.00068µF to 1.5µF. These film capacitors are automotive qualified non polarized electrical capacitors with insulated polyester film as dielectric.
- .
- Automotive grade AEC-Q200 compliant
- .
- Rated DC voltage of 50V, 63V, 250V, 400V, 630V
- .
- Rated AC voltage of 32V, 40V, 63V, 160V, 220V
- .
- ±5% and ±10% tolerance
- .
- Compliant to IEC 60384-2 standard
- .
- Endurance is 2000h at 85°C
- .
- Flame retardant plastic case and epoxy resin coated with tinned wire
- .
- Maximum operating temperature is 85°C
额定电压DC 100 V
额定电压AC 63 V
电容 68000 pF
容差 ±10 %
工作温度Max 100 ℃
工作温度Min -55 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 2
封装 Radial, Box
引脚间距 5.08 mm
长度 7.2 mm
宽度 2.5 mm
高度 6.5 mm
封装 Radial, Box
引脚间距 5.08 mm
工作温度 -55℃ ~ 105℃
包装方式 Each
制造应用 Industrial, 便携式器材, Automotive, 通用, 工业, 消费电子产品, 车用, Consumer Electronics, Portable Devices, 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BFC237021683 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
BFC237022683 威世 | 类似代替 | BFC237021683和BFC237022683的区别 |
BFC237011683 威世 | 功能相似 | BFC237021683和BFC237011683的区别 |
BQ014D0683K 艾维克斯 | 功能相似 | BFC237021683和BQ014D0683K的区别 |
