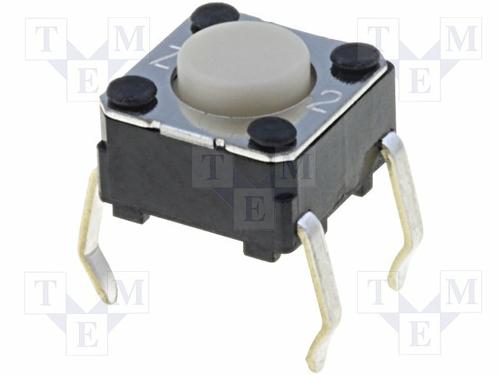

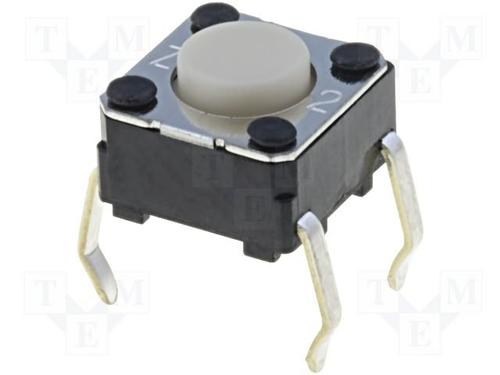

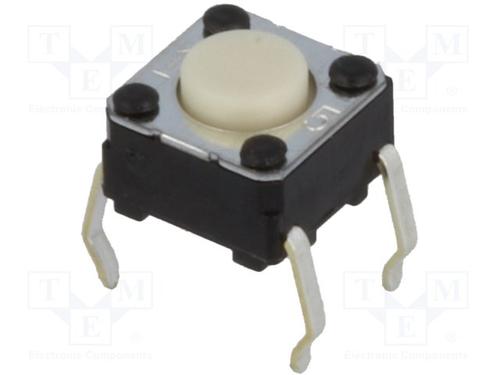

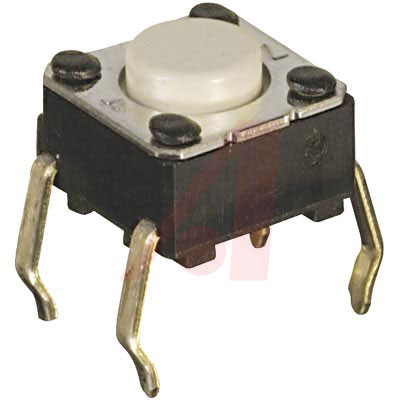

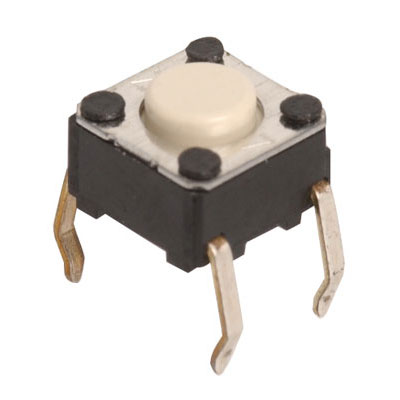

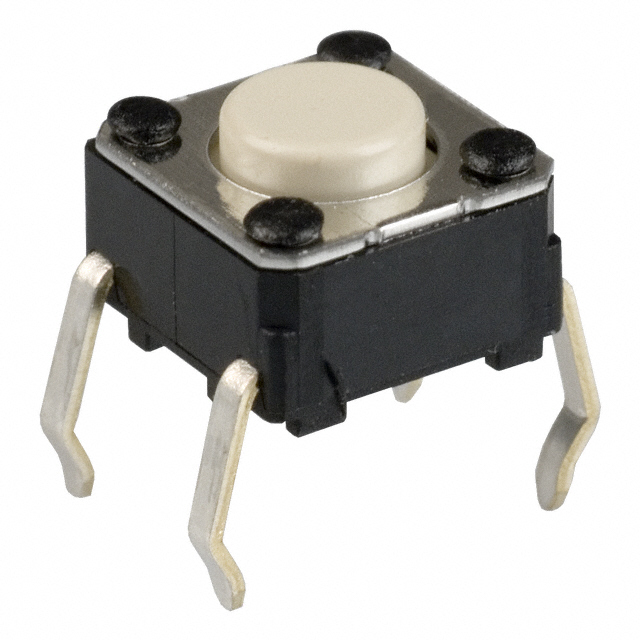

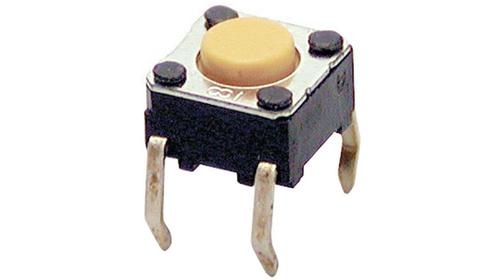

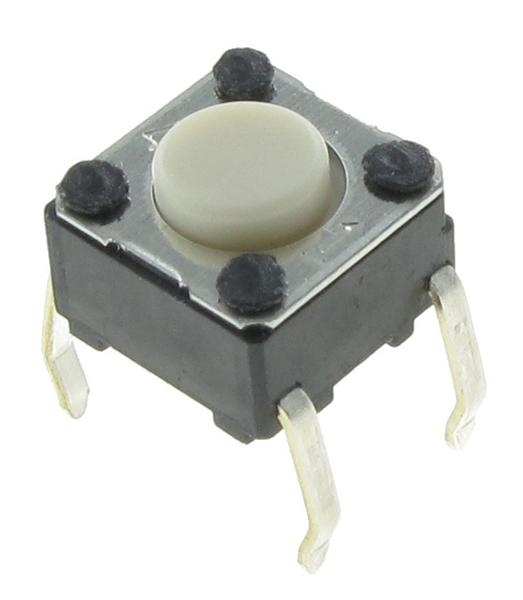

OMRON ELECTRONIC COMPONENTS B3F-1000 轻触开关, 不发光, 0.98 N, 24 V, 50 mA, 焊接, B3F系列
The B3F series are tactile switches. These switches are available in 6mm × 6mm, 12mm × 12mm sizes with different models such as standard, side operated, long durability, high force and high reliability gold plated etc. The gold plated models have increased contact reliability, resistance to corrosive gas and insulation failure prevention for ion migration in harsh environments.
- .
- Extended mechanical/electrical durability
- .
- Taped radial type, vertical type and high force types are available
- .
- Flat type and projected type plunger
- .
- DIP terminals
- .
- Operating force is 0.98N, 1.27N, 1.47N, 1.76N, 2.55N, 4.9N based on ordering
- .
- SPST-NO contact configuration
- .
- Maximum switching capacity of 50mA at 24VDC
- .
- Type B32 key tops are available only for projected plunger models
触点电镀 Silver
额定电压DC 5.00 V
接触器类型 Standard
额定电流 50 mA
绝缘电阻 100 MΩ
排数 2
方向 Vertical
触点类型 SPST-NO
接触电阻 100 mΩ
触点额定电流 50.0 mA
额定电流Max .05 A
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 100 mΩ
安装方式 Through Hole
引脚数 4
封装 Radial
长度 6 mm
宽度 6 mm
高度 3.4 mm
封装 Radial
触点材质 Phosphor Bronze
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Industrial, Power Management, Automation & Process Control, Automation & Process Control, Power Management, Industrial, 自动化与过程控制, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
B3F-1000 Omron 欧姆龙 | 当前型号 | 当前型号 |
MC32861 Multicomp | 类似代替 | B3F-1000和MC32861的区别 |
MC32860 Multicomp | 类似代替 | B3F-1000和MC32860的区别 |
2-1825910-7 泰科 | 功能相似 | B3F-1000和2-1825910-7的区别 |
