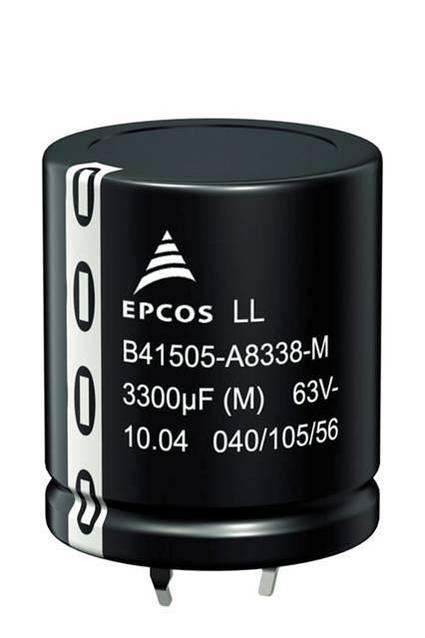

B41505A8108M000图片1

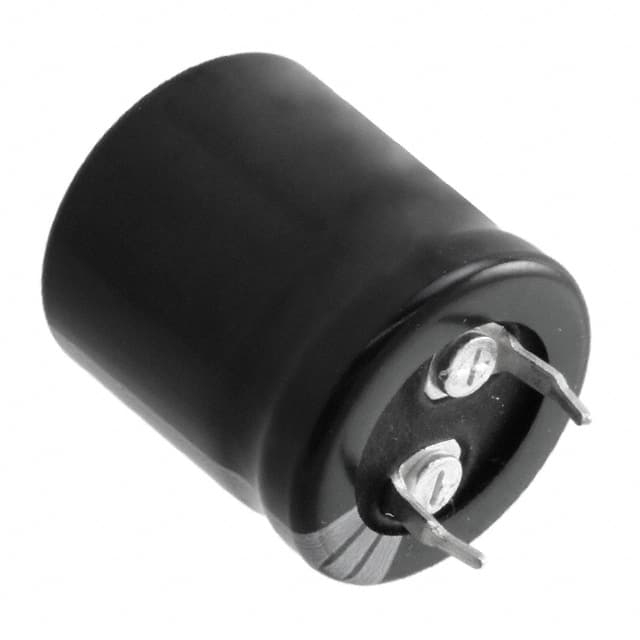

B41505A8108M000图片2
B41505A8108M000图片3
B41505A8108M000图片4
B41505A8108M000图片5
B41505A8108M000概述

EPCOS  B41505A8108M000  铝电解电容, 长寿命, B41505系列, 1000 µF, ± 20%, 63 V, 22 mm, 0.149 ohm

The B41505 series long life grade Aluminium Electrolytic Capacitor encapsulated in an aluminium case fully insulated with PVC. It has snap-in solder pins to hold component in place on PC-board, overload protection by safety vent on the base and minus pole marking on case surface, it is not insulated from case. It features high reliability, long useful life, outstanding ripple current capability and low ESR. It is used in professional power supplies.

.
Charge-discharge proof, polar
.
Capacitors with all insulation versions pass the needle flame test according to IEC 60695-11-5
.
10 to 100VDC Rated voltage range
.
560 to 33000µF Rated capacitance range
B41505A8108M000中文资料参数规格
技术参数

额定电压DC 63.0 V

电容 1000 µF

等效串联电阻ESR 0.149 Ω

容差 ±20 %

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压 63 V

封装参数

安装方式 Through Hole

引脚间距 10 mm

外形尺寸

高度 25 mm

直径 22.0 mm

引脚间距 10 mm

其他

产品生命周期 Active

包装方式 Bulk

寿命(小时) 5000h @105℃

制造应用 Power Management, 电源管理, 工业, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买B41505A8108M000
型号: B41505A8108M000
制造商: Epcos 爱普科斯
描述:EPCOS  B41505A8108M000  铝电解电容, 长寿命, B41505系列, 1000 µF, ± 20%, 63 V, 22 mm, 0.149 ohm
