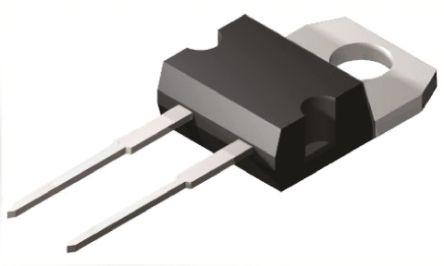

NXP BYC10D-600 快速/超快功率二极管, 超快, 单, 600 V, 10 A, 2.5 V, 30 ns, 71 A
The is a hyperfast Power Diode features reduces switching losses in associated MOSFET, low reverse recovery current and low thermal resistance. The hyperfast rectifier is designed to have the best trade-off between forward voltage and reverse recovery time to minimize power losses in both diode and associated MOSFET and hence maximize overall system power efficiency in switched mode power supply SMPS applications.
- .
- 500V DC reverse voltage
- .
- 20A Repetitive peak forward current
反向恢复时间 30 ns
正向电流 10 A
最大正向浪涌电流（Ifsm） 71 A
正向电压Max 2.5 V
正向电流Max 10 A
工作温度Max 150 ℃
安装方式 Through Hole
引脚数 2
封装 TO-220
长度 10.3 mm
宽度 4.7 mm
高度 15.8 mm
封装 TO-220
产品生命周期 Unknown
包装方式 Each
制造应用 Imaging, Lighting, 成像, 照明, 视频和目视, Video & Vision, 电源管理, Power Management
RoHS标准 RoHS Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
