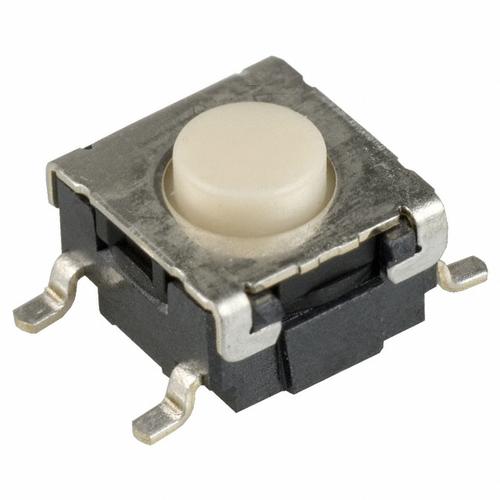

OMRON ELECTRONIC COMPONENTS B3S-1102P 轻触开关, 不发光, 2.26 N, 24 V, 50 mA, 焊接
顶部触动 触摸 SPST-NO 表面贴装型
得捷:
SWITCH TACTILE SPST-NO 0.05A 24V
立创商城:
开关
贸泽:
Tactile Switches SP SEALED W/GRND TAPE
e络盟:
轻触开关, B3S Series, 顶部操作, 表面安装, 圆形按钮, 230 gf, 24VDC时, 50mA
艾睿:

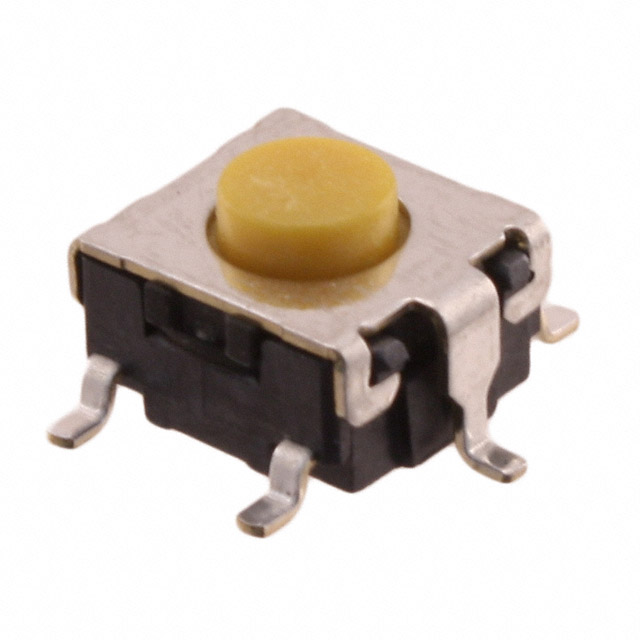

Want to use a force of pressure to turn on your circuit? Check out this B3S-1102P tactile switch from Omron. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This tactile switch has an operating temperature range of -25 °C to 70 °C. The B3S-1102P tactile switch has a gull wing termination style. This product is 9 mm deep. The maximum DC voltage rating is 24 VDC. This yellow round button actuator is 0.8 mm long.
安富利:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 500000Cycle 2.26N SMD Embossed Tape
Chip1Stop:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 500000Cycle 2.26N SMD Embossed Tape
Verical:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 500000Cycles 2.26N SMD T/R
Newark:
# OMRON ELECTRONIC COMPONENTS B3S-1102P SWITCH, 6X6X4.3MM, SEALED, 2.26N
MASTER:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 500000Cycles 2.26N SMD T/R
Electro Sonic:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 24VDC 500000Cycles 2.26N SMD T/R
额定电压DC 24 V
额定电流 50 mA
排数 2
触点类型 SPST-NO
触点额定电流 50.0 mA
额定电流Max 0.05A @24VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压DC Max 24 V
接触电阻Max 100 mΩ
安装方式 Surface Mount
封装 SMD
长度 6.6 mm
宽度 6 mm
高度 4.3 mm
封装 SMD
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
B3S-1102P Omron 欧姆龙 | 当前型号 | 当前型号 |
B3S-1102 欧姆龙 | 完全替代 | B3S-1102P和B3S-1102的区别 |
MC32845 Multicomp | 类似代替 | B3S-1102P和MC32845的区别 |
MC32885 Multicomp | 类似代替 | B3S-1102P和MC32885的区别 |
