B3F-3152

Omron B3F3000 系列 6 x 6 mm提供具有垂直主体和水平执行器的型号。### 触控

轻触式 B3F3000 系列 6 x 6 mm

提供具有垂直主体和水平执行器的型号。

得捷:
SWITCH TACTILE SPST-NO 0.05A 24V

欧时:
### 轻触式开关 Omron B3F3000 系列 6 x 6 mm提供具有垂直主体和水平执行器的型号。### 触控

立创商城:
150gf

e络盟:
轻触开关, B3F系列, 侧部操作, 通孔安装, 柱塞, 150 gf, 24VDC时, 50mA

艾睿:

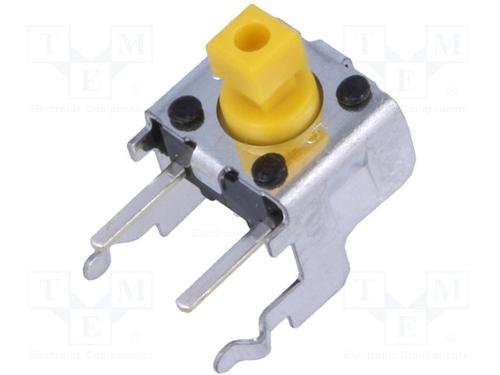

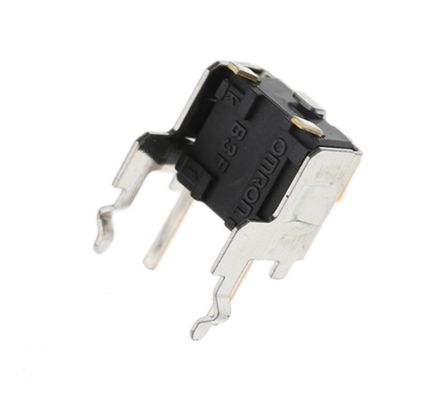

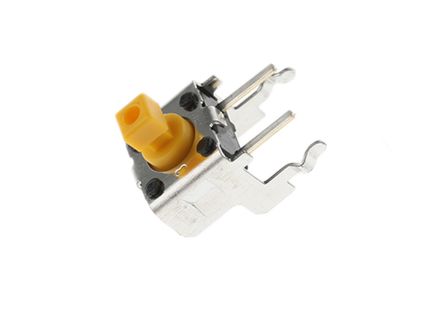

Wow! This miniature B3F-3152 tactile switch from Omron is easy for turning on your circuit with applied force. This device has a maximum current rating of 0.05 A @ 24VDC. It has a SPST configuration. This tactile switch has a minimum operating temperature of -25 °C and a maximum of 70 °C. The B3F-3152 tactile switch has a PC pin termination style. This product is 8.7 mm long, 7.4 mm tall and 10.15 mm deep. This projected plunger actuator is yellow. The maximum DC voltage rating is 24 VDC.

Allied Electronics:
Switch; Tactile; 1 to 50 mA; 5 to 24 VDC; Projected; 6 x 6 mm; SPST-NO; PCB

Jameco:
Switch Tactile N.O. Single Pole Single Throw Projected Plunger Pc Pins 0.05A 24 Volt 1.47N Thru-Hole Bag

Chip1Stop:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1.47N Thru-Hole Bag

TME:
Microswitch; 1-position; SPST-NO; 0.05A/24VDC; THT; 1.47N; 6x6mm

Verical:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1.47N Thru-Hole Bag

Newark:
# OMRON ELECTRONIC COMPONENTS  B3F-3152  Tactile Switch, Non Illuminated, 24 V, 50 mA, 1.47 N, Solder, B3F Series

MASTER:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1.47N Thru-Hole Bag

Online Components:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1.47N Thru-Hole Bag

Electro Sonic:
Switch Tactile N.O. SPST Projected Plunger PC Pins 0.05A 24VDC 1.47N Thru-Hole Bag
