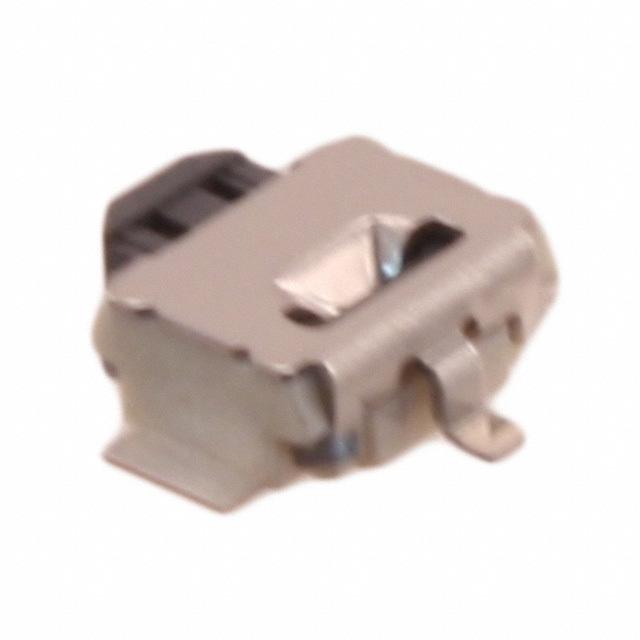

OMRON ELECTRONIC COMPONENTS B3U-3100PM-B 轻触开关, SPST-常开
侧面触动 触摸 SPST-NO 表面贴装,直角
得捷:
SWITCH TACTILE SPST-NO 0.05A 12V
立创商城:
B3U-3100PM-B
贸泽:
触觉开关 Tactile SideActuated Ground Term w/Boss
e络盟:
开关, 轻触, SPST-常开, 50MA, SMD
艾睿:
This ultra-small B3U-3100PM-B tactile switch from Omron is perfect for turning on your circuit by applying pressure. This device has a maximum current rating of 0.05 A @ 12VDC. It has a SPST configuration. This tactile switch has a minimum operating temperature of -25 °C and a maximum of 70 °C. The B3U-3100PM-B tactile switch has a gull wing termination style. This product is 4 mm long, 1.2 mm tall and 3.85 mm deep. This round button actuator is 0.7 mm long. The maximum DC voltage rating is 12 VDC.
Chip1Stop:
Switch Tactile N.O. SPST Button Gull Wing 0.05A 12VDC 1.59N SMD Embossed T/R
TME:

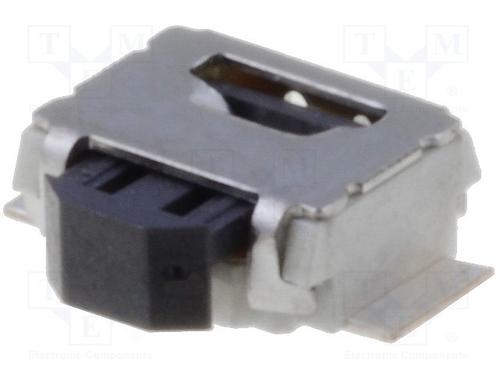

Microswitch; 1-position; SPST-NO; 0.05A/24VDC; SMT; 0.49N; 2.5x3mm
Newark:
# OMRON ELECTRONIC COMPONENTS B3U-3100PM-B Tactile Switch, Non Illuminated, 12 V, 50 mA, 1.59 N, SMD, B3U Series
MASTER:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 1.59N SMD T/R
Online Components:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 1.59N SMD T/R
Electro Sonic:
Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 12VDC 1.59N SMD T/R
额定电压DC 12 V
额定电流 50 mA
排数 1
触点类型 SPST-NO
额定电流Max 0.05A @12VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
接触电阻Max 100 mΩ
安装方式 Surface Mount
封装 SMD
长度 4 mm
宽度 3.85 mm
高度 1.2 mm
封装 SMD
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
B3U-3100PM-B Omron 欧姆龙 | 当前型号 | 当前型号 |
B3U-3100P-B 欧姆龙 | 完全替代 | B3U-3100PM-B和B3U-3100P-B的区别 |
