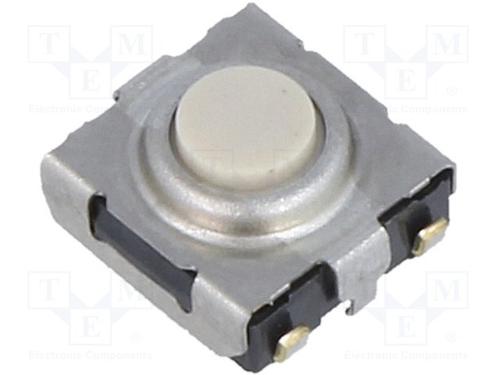

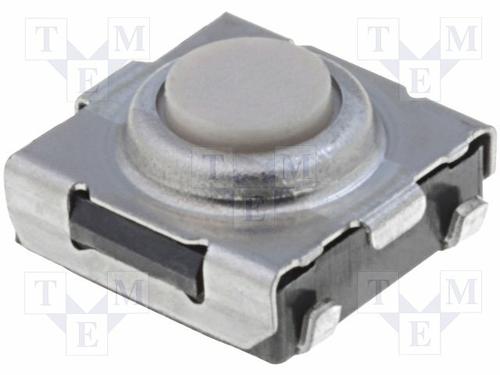

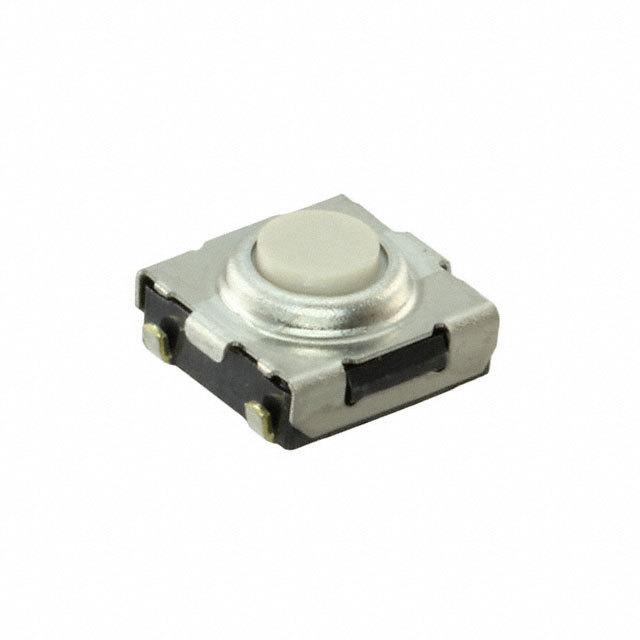

B3SN-3112

OMRON ELECTRONIC COMPONENTS  B3SN-3112  轻触开关, 不发光, 1.57 N, 24 V, 50 mA, 焊接, B3SN系列

轻触式 B3SN

细长、密封开关，带有贴片端子

细长型，有助于减小产品尺寸

提供接地端子，用于防静电保护

密封结构符合 IP67 IEC-60529 标准

### 注

有 P 后缀的制造商部件号以胶带卷装或条带供货，而没有 P 后缀的部件号为每袋数量

### 触控

得捷:
SWITCH TACTILE SPST-NO 0.05A 24V

欧时:
轻触式开关 Omron B3SN细长、密封开关，带有贴片端子细长型，有助于减小产品尺寸 提供接地端子，用于防静电保护 密封结构符合 IP67 IEC-60529 标准### 注有 P 后缀的制造商部件号以胶带卷装或条带供货，而没有 P 后缀的部件号为每袋数量### 触控

e络盟:
轻触开关, B3SN系列, 顶部操作, SMD, 圆形按钮, 160 gf, 24VDC时, 50mA

艾睿:
Want to use a force of pressure to turn on your circuit? Check out this B3SN-3112 tactile switch from Omron. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 24VDC. This tactile switch has an operating temperature range of -25 °C to 70 °C. The B3SN-3112 tactile switch has a j-bend termination style. The maximum DC voltage rating is 24 VDC. This product is 6.5 mm long, 3.1 mm tall and 7 mm deep. This round button actuator is ivory.

Chip1Stop:
Switch Tactile N.O. SPST Round Button J-Bend 0.05A 24VDC 50000Cycles 1.57N SMD Bag

TME:
Microswitch TACT; SPST-NO; Positions:2; 0.05A/24VDC; SMT; none

Verical:
Switch Tactile N.O. SPST Round Button J-Bend 0.05A 24VDC 50000Cycles 1.57N SMD Bag

Newark:
SWITCH, SPST-NO, 0.05A, 24VDC, SMD, GND

MASTER:
Switch Tactile N.O. SPST Round Button J-Bend 0.05A 24VDC 50000Cycles 1.57N SMD Bag

Electro Sonic:
Switch Tactile N.O. SPST Round Button J-Bend 0.05A 24VDC 50000Cycles 1.57N SMD Bag
