B3WN-6002

OMRON ELECTRONIC COMPONENTS  B3WN-6002  轻触开关, 不发光, 1.96 N, 12 V, 50 mA, 焊接, B3WN系列

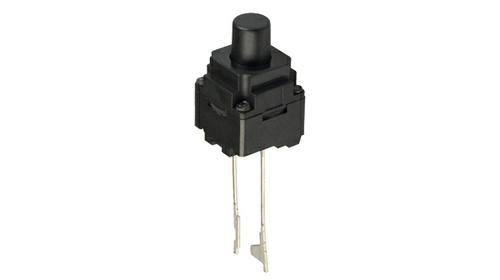

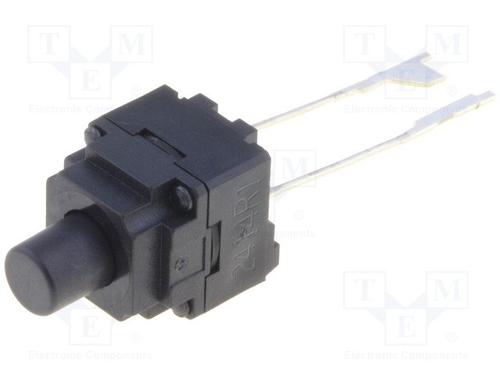

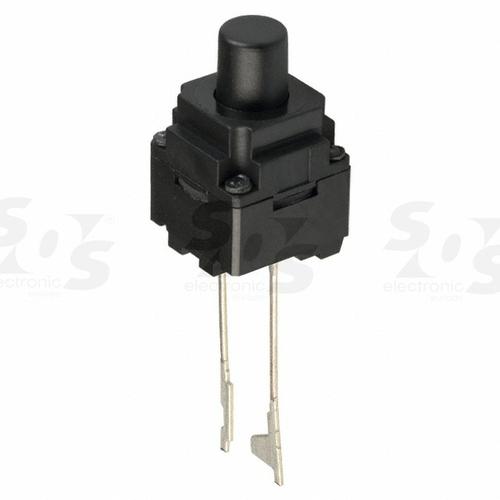

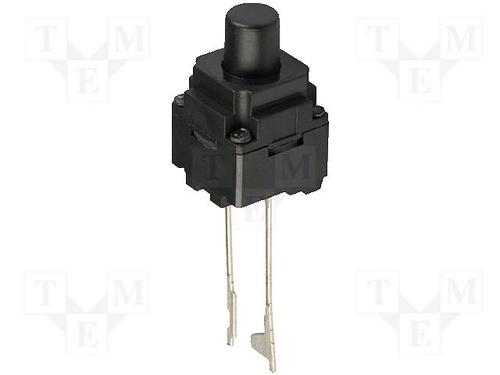

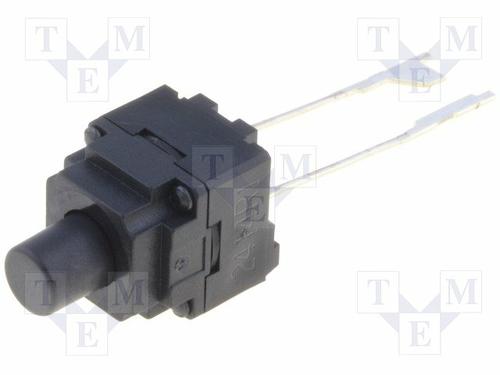

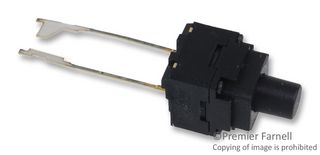

The is a single-pole single-throw SPST sealed Tactile Switch with NO contact and a double-sealed structure for high resistance to water and dust. The through-hole-mount tactile switch has silver-plated contacts and a black plunger. The sealed construction conforming to IP67 IEC- 60529 provides high reliability in dusty or humid environments.

.

100mR Maximum contact resistance

.

100MR Minimum insulation resistance

.

250VAC at 50/60Hz for one minute Dielectric strength

.

100000 operations Minimum durability

.

IP67 Protection rating
