BK4045B

B&K PRECISION  BK4045B  信号发生器, 任意/扫描, 20MHZ

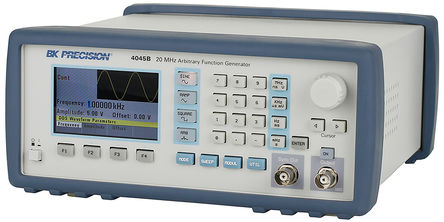

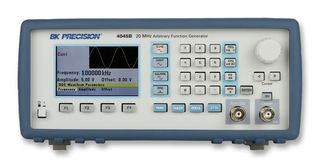

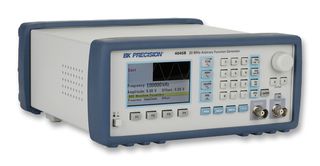

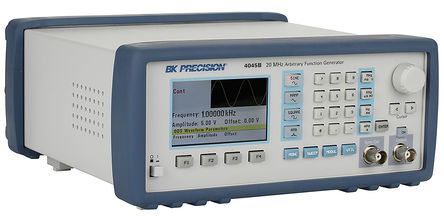

Model 4045B is a 20 MHz DDS direct digital synthesis function generator that generates stable and precise sine, square, and triangle waveforms. It provides variable output voltages from 0 to 10 Vpp into 50R up to 20 Vpp into open circuit, linear and logarithmic sweep, AM/FM modulation, built-in counter, and a continuously variable DC offset that allows the output to be injected directly into circuits at the correct bias level. Separate output amplitude and DC offset amplifiers let you set a large DC offset e.g. ± 4.99 V with a small amplitude output signal e.g. 10 mV, a feature typically found in more expensive generators.

.

Triangle/ramp waveforms up to 2 MHz

.

Sine and square waveforms up to 20 MHz

.

12-bit, 50 MSa/s, 1k point arbitrary waveform generator

.

Bright colour display with waveform preview

.

Linear and logarithmic sweep

.

AM/FM modulation

.

Independent output and DC offset amplifiers allow for small amplitude output signals

.

Low-jitter square wave generation

.

Adjustable duty cycle

.

Output ON/OFF button

.

Internal/external triggering

.

Built-in counter

.

USB interface

.

SCPI-compliant command set

.

Gate and burst mode

.

Short circuit and overvoltage protection on all inputs and outputs

.

3 Year manufacturer warranty
