BA3472YFV-CE2

ROHM  BA3472YFV-CE2  运算放大器, AEC-Q100, 高速, 4 MHz, 2, 10 V/µs, 3V至36V, ± 1.5V至± 18V, SSOP, 8

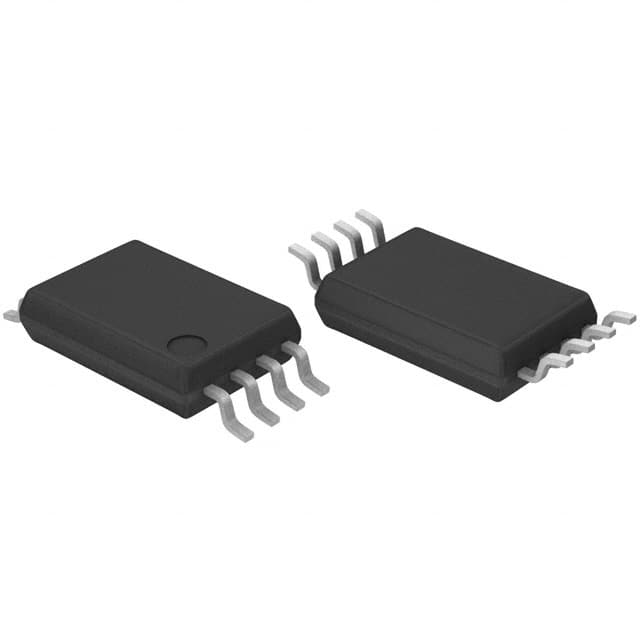

The is a high speed operational amplifier in 8 pin SSOP package and it has integrated two independent op-amps on a single chip. The common-mode input voltage range includes ground level allowingdirect ground sensing. It is used in engine control unit, electric power steering EPS and anti-lock braking system ABS.

.

Wide operating supply voltage, single supply of 3V to +36V and dual supply of ±1.5V to ±18V

.

Wide temperature range from -40°C to +125°C

.

Automotive grade AEC-Q100 qualified

.

Input offset voltage of 10mV max & low input offset current of 6nA typ

.

Low input bias current of 100nA typ

.

Wide output voltage range from VEE+0.3V to VCC-1.0V typ and VCC-VEE = 30V

.

High slew rate of 10V/µstyp

.

Gain band width of 4MHz typ

.

Standard op-amp pin assignments, high open loop voltage gain

.

Internal ESD protection circuit

ESD sensitive device, take proper precaution while handling the device.
