B2911A概述

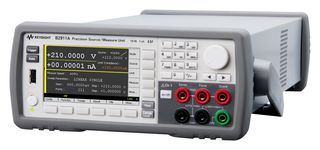

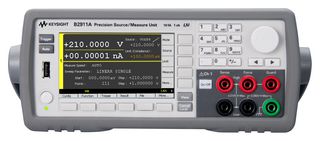

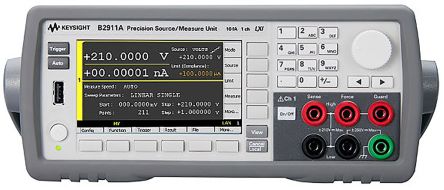

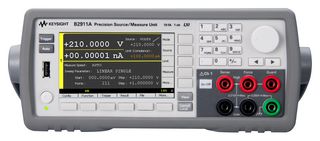

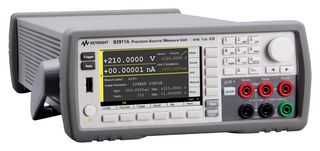

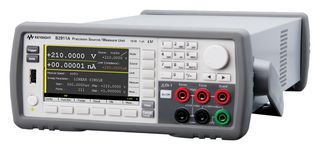

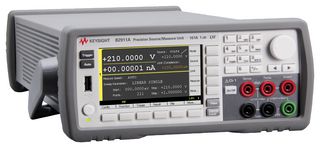

KEYSIGHT TECHNOLOGIES  B2911A  源测量单元, ± 200mV至± 200V, ± 10nA至± 10A, 31.8 W

The Keysight Precision Source / Measure Unit SMU is a 1-channel, compact and cost-effective bench-top SMU with the capability to source and measure both voltage and current. It is versatile to perform I/V current vs. voltage measurement easily with high accuracy. Integration of 4 quadrant source and measurement capabilities enables I/V measurement simply and easily without configuring multiple instruments. The wide coverage of 210 V, 3 A DC/10.5 A pulse with a single instrument minimizes the investment. Minimum 10 fA/100 nV measurement resolution support accurate characterization of DUT. The superior 4.3"" color display and various view modes improve productivity for test, debug and characterization with intuitive operation.

.
Supports one-channel configuration
.
Minimum source resolution: 10fA/100nV, Minimum measurement resolution: 10fA/100nV
.
Maximum output: 210V, 3ADC/10.5A pulse
.
Arbitrary waveform generation and digitizing capabilities from 10µs interval
.
Integrated 4-quadrant source and measurement capabilities
.

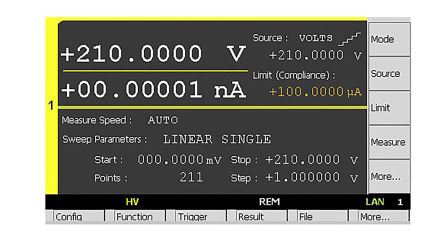

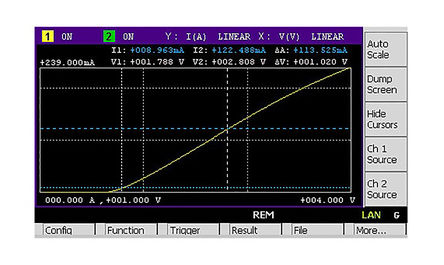

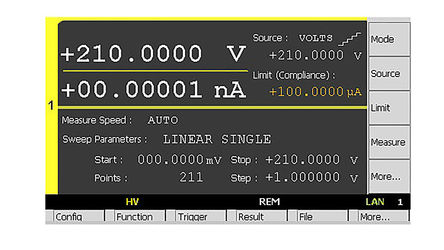

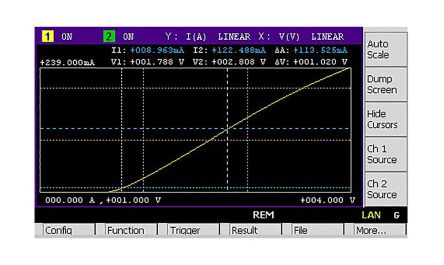

The 4.3"" color display supports both graphical and numerical view modes
.
Free application software to facilitate PC-based instrument control
.
High throughput and SCPI command supporting conventional SMU command set
B2911A中文资料参数规格
技术参数

输出接口数 1

输出电压 210 V

输出电流 3.03 A

通道数 1

输出功率 31.8 W

额定功率Max 31.8 W

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free

数据手册

在线购买B2911A
型号: B2911A
制造商: Keysight Technologies
描述:KEYSIGHT TECHNOLOGIES  B2911A  源测量单元, ± 200mV至± 200V, ± 10nA至± 10A, 31.8 W
