B2961A

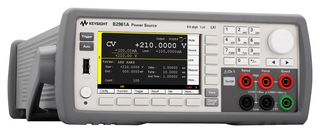

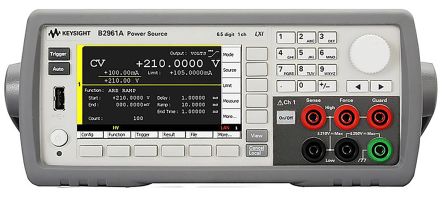

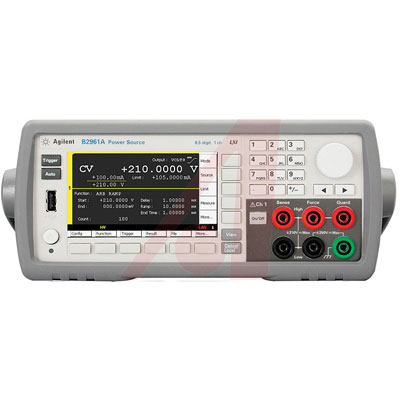

KEYSIGHT TECHNOLOGIES  B2961A  源测量单元, ± 200mV至± 200V, ± 10nA至± 10A, 31.8 W

The Keysight 6.5 Digit Low Noise Power Sources are a new generation of power supply/sources offering best-in-class precision, wide bipolar output ranges and extremely low noise. They also possess graphing capabilities and other innovative features that enable tests and evaluation that conventional power supply/sources cannot do. This makes them ideal companion products for other instruments such as oscilloscopes, network analyzers, spectrum analyzers, frequency counters, digital multi meters, nano-voltmeters, etc. The Keysight B2961A can provide a power supply and source solution that meets the difficult measurement challenges faced by researchers, designers and developers working on advanced components, circuits and materials.

.

6.5 digit 1-channel source

.

Wide and bipolar voltage/current sourcing 100nV - 210V / 10fA - 10.5A, 31.8W

.

Best-in-class noise performance 10µVrms, 1nVrms/√Hz with external filter

.

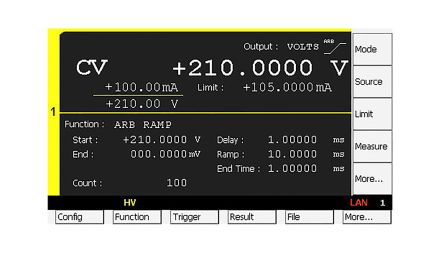

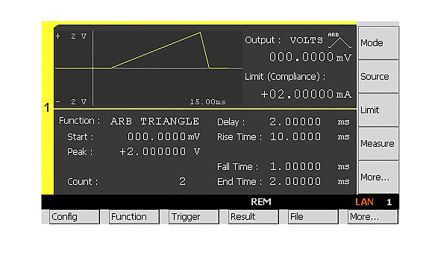

Arbitrary waveform capability supporting seven built-in functions and user defined 1mHz - 10kHz

.

4.5 digit built-in voltage/current monitoring capability minimum resolution: 10µV / 1pA

.

Programmable output resistance with voltage / current output characteristics emulation capability

.

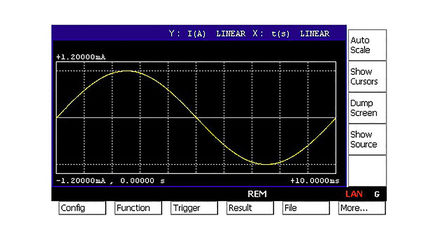

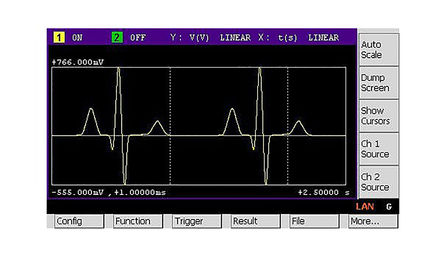

Graphical user interface on 4.3" colour LCD supporting time domain voltage/current monitoring

.

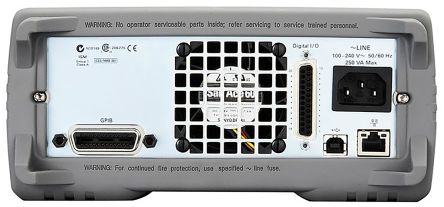

LXI Core Conformant, USB 2.0, GPIB, LAN and digital I/O interface
