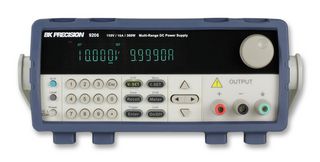

B&K PRECISION BK9206 稳压电源, 1通道, 150V, 10A, 可编程
The is a multi-range programmable DC Power Supply with thermostatically controlled fan. Unlike conventional supplies with fixed output ratings, the 9200 series automatically recalculates voltage and current limits for each setting, providing maximum output power in any V/A combination within the rated voltage and current limits. It provides a numerical keypad for direct entry of voltage and current values along with convenient cursors and a rotary knob to quickly make incremental voltage and current changes. For remote control, the standard USB, RS232 and GPIB interfaces supporting SCPI commands can be used to remotely control the power supplies via a PC. Alternatively, users can control the power supply, execute test sequences or log measurements using the provided PC software application. This software also integrates with data dashboard for LabVIEW™ apps enabling iOS, Android or Windows 8 compatible tablets or smartphones to remotely monitor select measurement indicator
- .
- High programming and read back resolution
- .
- Store and recall up to 72 instrument settings
- .
- Output timer function
- .
- List mode programming
- .
- Remote sense
- .
- Thermostatically controlled fan
- .
- Built-in digital voltmeter DVM
- .
- Overvoltage/overpower/overtemperature protection and key-lock function
- .
- Compact 19" half-rack form factor allows for side-by-side rack mounting of two units
