BC 5-Q08-AP6X2概述

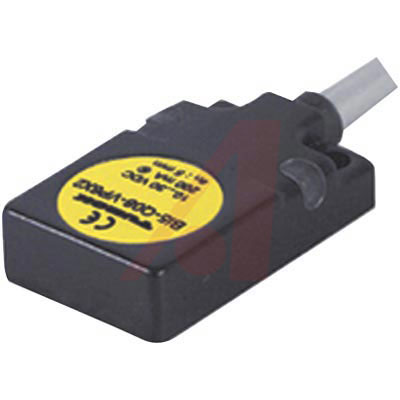

TURCK  BC 5-Q08-AP6X2  电容性接近传感器

Rectangular Capacitive Sensors, LED Type Display, 5 mm Range

** TURCK"s** compensation electrode technology prevents false triggers. In practice, sensors can be effected by water droplets, humidity, dust, etc., causing false outputs. to combat this effect each ** TURCK** Capacitive sensor incorporates a compensating electrode which forms part of a negative feedback circuit. When contaminants are on the sensor face, they affect the sensor"s main field, as well as its compensation field. The negative feedback circuit detects the increase in both fields, and can filter out the effect of contaminants.

** Features**

* Short Circuit and Overload Protection Incorporated

* Choice of Potted-In Cable or M8 _** picofast**_® Quick Disconnect Termination

* Reverse Polarity and Wire Break Protection

* LEDs Indicate: Output Energized and Power On

* Normally Open Output

** Specifications**

* Environment Rating: NEMA 1, 3, 4, 6, 13; IP 67

* Operating Temperature: –13°F to +158°F

* Continuous Load Current: 200 mA Max.

* Voltage Drop: 1.8 VDC at 200 mA

BC 5-Q08-AP6X2中文资料参数规格
技术参数

电源电压DC 10.0V min

额定电流 200 mA

开关电流 200 mA

工作温度Max 70 ℃

工作温度Min -25 ℃

电源电压 30 VDC

封装参数

安装方式 Solder Lug

外形尺寸

长度 32.004 mm

电缆长度 2 m

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2016/06/20

数据手册

在线购买BC 5-Q08-AP6X2
型号: BC 5-Q08-AP6X2
制造商: Turck
描述:TURCK  BC 5-Q08-AP6X2  电容性接近传感器
