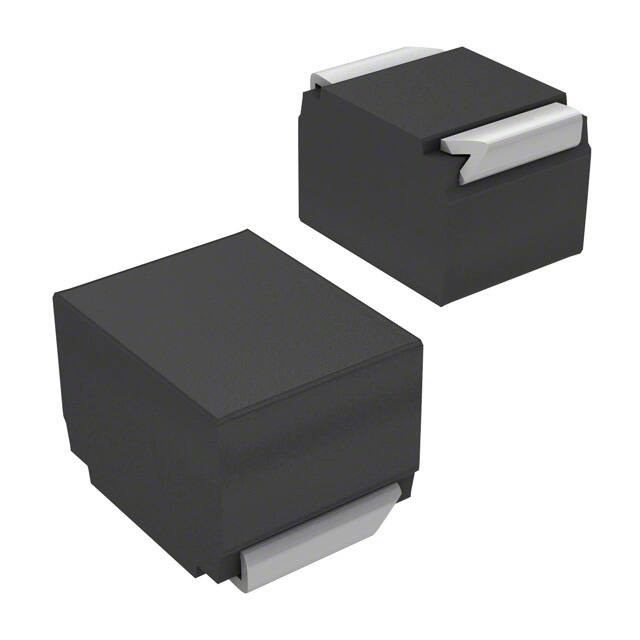

EPCOS B82422H1472K000 表面贴装高频电感器, B82422H系列, 4.7 µH, ± 10%, 1210 [3225 公制], 46 MHz, 0.25 ohm
B82422H1472K
欧时:
### Epcos 1210 B82422H SIMID Series Wire Wound InductorsFrom Epcos, the SIMID Series Wire Wound Inductors features is capable of handling very high currents. With a flame retardant encapsulation, the SIMID series of wire wound inductors have a high temperature range, and are well suited to DC/DC converters and switch mode power supplies.**Features and Benefits:** Laser welded winding Ferrite drum core Suitable for reflow soldering acc. JEDEC J STD 020C Qualified to AEC-Q200 ### 表面安装 1210 电感器(扼流圈)
e络盟:
高频电感器, 4.7 µH, B82422H系列, 700 mA, 1210 [3225 公制], 绕线, 0.25 ohm
Verical:
Inductor Power Chip Molded Wirewound 4.7uH 10% 2.52MHz 10Q-Factor Ferrite 0.7A 0.25Ohm DCR 1210 Automotive T/R
Newark:
# EPCOS B82422H1472K000 Surface Mount High Frequency Inductor, B82422H Series, 4.7 µH, 700 mA, 1210 [3225 Metric]
额定电流 700 mA
电感 4.7 µH
自谐频率 46 MHz
Q值 10.0
电感公差 ±10 %
测试频率 2.52 MHz
电阻DC) 0.25 Ω
额定电流DC 700 mA
电阻DC Max 0.25 Ω
安装方式 Surface Mount
引脚数 2
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 2.4 mm
封装公制 3225
封装 1210
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
B82422H1472K000 Epcos 爱普科斯 | 当前型号 | 当前型号 |
B82422H1472K 爱普科斯 | 类似代替 | B82422H1472K000和B82422H1472K的区别 |
