B45197A3107K509

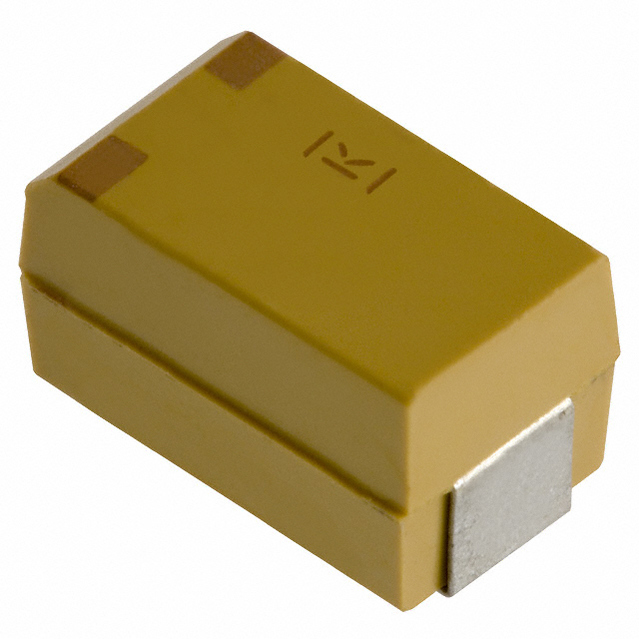

KEMET  B45197A3107K509  表面贴装钽电容, B45197系列, 100 µF, ± 10%, 16 V, 2917 [7343 公制], E

The Kemet B45197 series tantalum chip capacitors are replaced by T495 series low ESR, surge robust MnO2 polarized tantalum chip capacitors. T495 series capacitors are designed for demanding applications that require high surge current and high ripple current capability. These capacitors builds upon proven capabilities of industrial grade tantalum chip capacitors to offer several advantages such as low ESR, high ripple current capability, excellent capacitance stability and improved resistance to high inrush currents.

.

Capacitance value ranges from 0.47µF to 1000µF

.

EIA 1206, 1210, 2312, 2917, 2924 case sizes available

.

±10% and ±20% tolerance

.

Rated voltage range from 2.5VDC to 50VDC

.

Operating temperature range -55°C to 125°C

.

Endurance is 2000h at 85°C

.

Meets or exceeds EIA standard 535BAAC

.

100% steady state accelerated aging

.

Optional gold plated terminations

.

Extended range values
