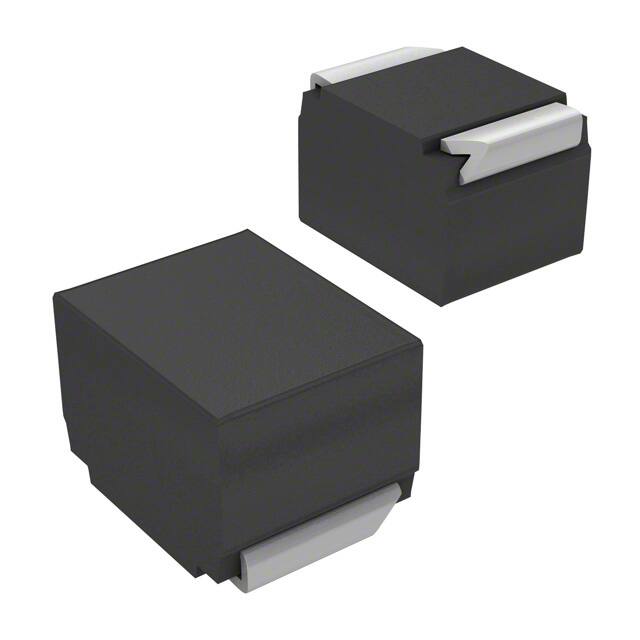

EPCOS B82422H1333K000 表面贴装高频电感器, B82422H系列, 33 µH, ± 10%, 1210 [3225 公制], 15 MHz, 1.4 ohm

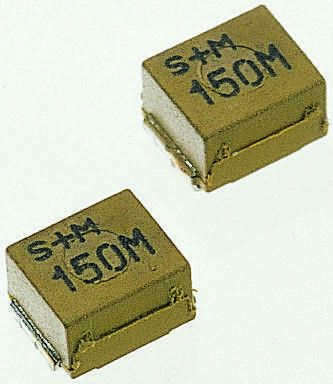

1210 B82422H SIMID 系列线绕器
Epcos 的 SIMID 系列线绕电感器可处理非常高的电流。SIMID 系列线绕电感器采用阻燃封装,具有高温度范围,且非常适用于直流/直流转换器和开关模式电源。
**特点和优势:**
激光焊接绕组
铁氧体磁鼓芯
适用于回流焊接,符合JEDEC J STD 020C
符合 AEC-Q200
欧时:
### Epcos 1210 B82422H SIMID Series Wire Wound InductorsFrom Epcos, the SIMID Series Wire Wound Inductors features is capable of handling very high currents. With a flame retardant encapsulation, the SIMID series of wire wound inductors have a high temperature range, and are well suited to DC/DC converters and switch mode power supplies.**Features and Benefits:** Laser welded winding Ferrite drum core Suitable for reflow soldering acc. JEDEC J STD 020C Qualified to AEC-Q200 ### 表面安装 1210 电感器(扼流圈)
e络盟:
高频电感器, 33 µH, B82422H系列, 280 mA, 1210 [3225 公制], 绕线, 1.4 ohm
Newark:
# EPCOS B82422H1333K000 Surface Mount High Frequency Inductor, B82422H Series, 33 H, 10%, 1210 [3225 Metric], 15 MHz
额定电流 280 mA
容差 ±10 %
电感 33 µH
自谐频率 15.0 MHz
Q值 10.0
电感公差 ±10 %
额定电流DC 280 mA
工作温度Max 105 ℃
电阻DC Max 1.4 Ω
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 2.2 mm
封装公制 3225
封装 1210
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
B82422H1333K000 Epcos 爱普科斯 | 当前型号 | 当前型号 |
NLCV32T-330K-EF 东电化 | 功能相似 | B82422H1333K000和NLCV32T-330K-EF的区别 |
