B45197A4686K509

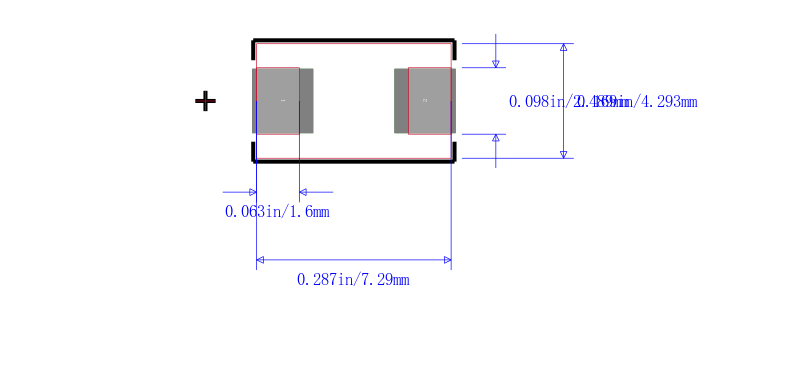

Cap Tant Solid 68uF 20V E CASE 10% 7.3 X 4.3 X 4.1mm SMD 7343-43 0.2Ω 125C T/R

Tantalum Chip Capacitors

SpeedPower, Low ESR

Features

Wide variety of Low ESR values

High ripple current capability

High volumetric efficiency

Excellent solderability

Stable temperature and frequency characteristics

Low leakage current, low dissipation factor

Low self-inductance

High resistance to shock and vibration

Suitable for use without series resistorspecial operating conditions recommended

Lead-free and material content compatible with RoHS

Some partnumbers are only available in M ±20% tolerance; these types have a maximum

capacitance drift at +125 °C of +20%

Construction

Polar tantalum capacitors with solid electrolyte

Conventional, optimized TaMnO2 technology

Flame-retardant plastic case UL 94 V-0

Optionally tinned or gold-plated terminals

Applications

Telecommunications e.g. mobile phones, infrastructure

Data processing e.g. laptops, mainframes

Measuring and control engineering e.g. voltage regulators

Automotive electronics e.g. navigation systems, electronic control units

Medical engineering

DC/DC converters
