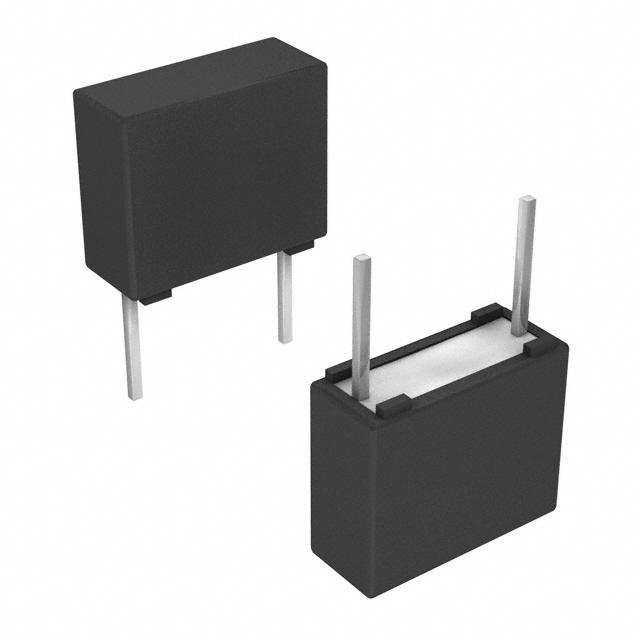

VISHAY BFC237011105. 膜电容, MKT370系列, 1 µF, ± 10%, PET聚酯, 63 V
The is a MKT radial potted metalized DC Film Capacitor with flame-retardant plastic case and epoxy resin UL-class 94V-0, polyester film dielectric and tinned wire leads. Suitable for blocking and coupling, bypass and energy reservoir.
- .
- Grade 1 long life performance grade
- .
- Rated DC voltage of 50V, 63V, 250V, 400V, 630V
- .
- Rated AC voltage of 32V, 40V, 63V, 160V, 220V
- .
- ±5% and ±10% tolerance
- .
- Compliant to IEC 60384-2 standard
- .
- Endurance is 2000h at 85°C
- .
- Flame retardant plastic case and epoxy resin coated with tinned wire
- .
- Maximum operating temperature is 85°C
额定电压DC 63 V
额定电压AC 40 V
电容 1 µF
容差 ±10 %
工作温度Max 100 ℃
工作温度Min -55 ℃
额定电压 63 V
安装方式 Through Hole
引脚数 2
封装 Radial, Box
引脚间距 5.08 mm
长度 7.2 mm
宽度 6 mm
高度 11 mm
封装 Radial, Box
引脚间距 5.08 mm
工作温度 -55℃ ~ 100℃
包装方式 Bulk
制造应用 Industrial, 便携式器材, Automotive, 通用, 工业, 消费电子产品, 车用, Consumer Electronics, Portable Devices, 电源管理, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
BFC237011105 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
MMK5105K63J04L4BULK 基美 | 类似代替 | BFC237011105和MMK5105K63J04L4BULK的区别 |
BFC237012105 威世 | 类似代替 | BFC237011105和BFC237012105的区别 |
BQ074D0105K 艾维克斯 | 类似代替 | BFC237011105和BQ074D0105K的区别 |
