NXP Semiconductors### 二极管和整流器,NXP SemiconductorsNXP 以不同封装和配置提供广泛的开关二极管。

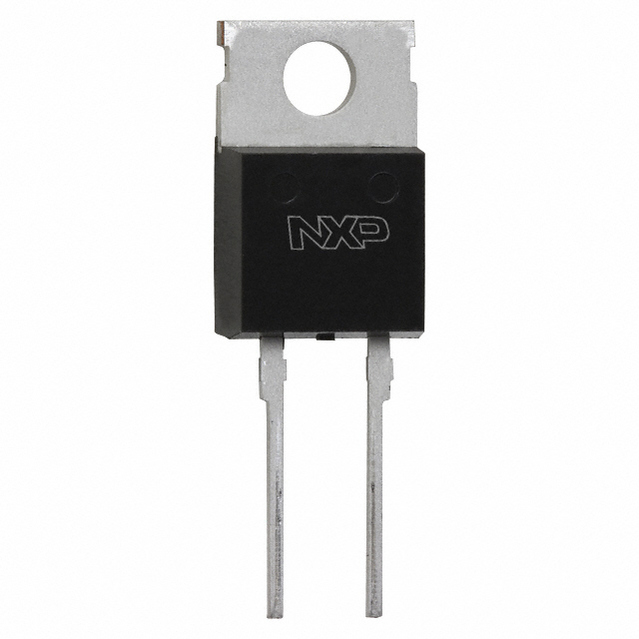

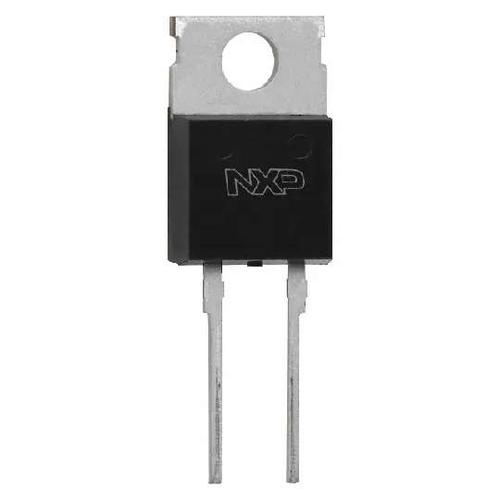

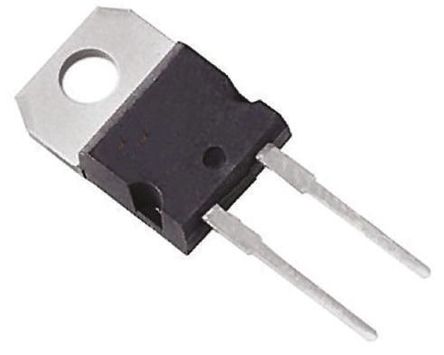

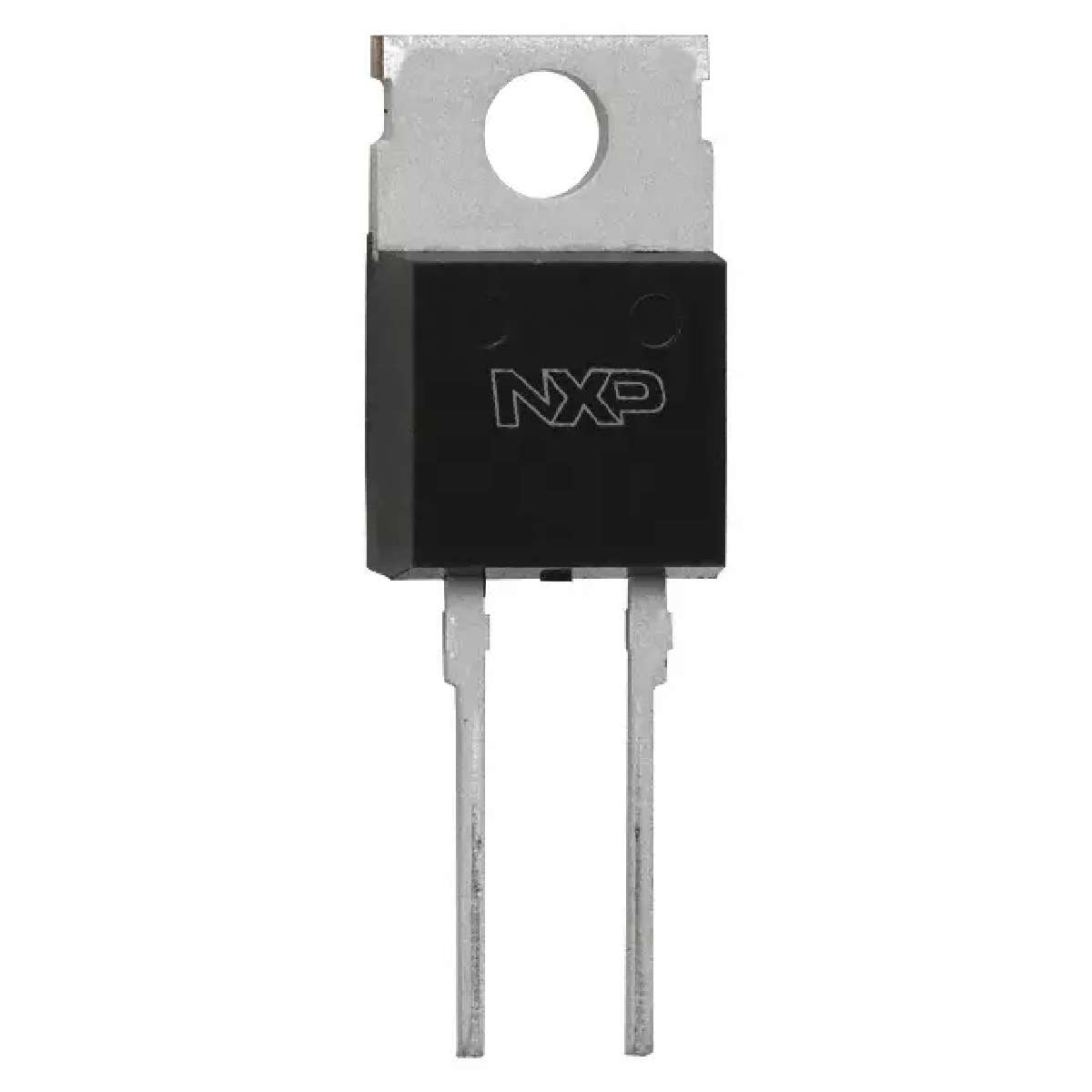

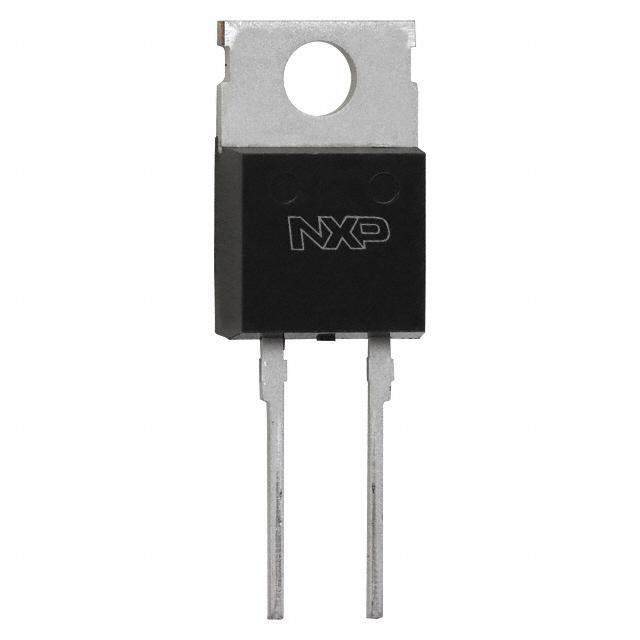

The is an ultrafast Power Diode in a plastic package. It is suitable for discontinuous current mode DCM, power factor correction PFC and output rectifiers in high-frequency switched-mode power supplies.
得捷:
DIODE GEN PURP 400V 9A TO220AC
艾睿:
Diode Switching 400V 9A 2-Pin2+Tab TO-220AC Rail
安富利:
Diode Switching 400V 9A 2-Pin2+Tab TO-220AC Tube
Verical:
Rectifier Diode Switching 400V 9A 60ns 2-Pin2+Tab TO-220AC Rail
Newark:
Fast / Ultrafast Diode, 400 V, 9 A, Single, 1.4 V, 60 ns, 110 A
Win Source:
DIODE GEN PURP 400V 9A TO220AC
正向电压 1.25V @8A
热阻 2.5℃/W RθJL
反向恢复时间 60 ns
正向电流 9 A
最大正向浪涌电流(Ifsm) 110 A
正向电压Max 1.25V @8A
正向电流Max 9 A
工作温度Max 150 ℃
工作温度Min -40 ℃
工作结温 150℃ Max
安装方式 Through Hole
引脚数 2
封装 TO-220-2
长度 10.3 mm
宽度 4.7 mm
高度 9.4 mm
封装 TO-220-2
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BYV29-400,127 NXP 恩智浦 | 当前型号 | 当前型号 |
MUR1560G 安森美 | 功能相似 | BYV29-400,127和MUR1560G的区别 |
MUR840G 安森美 | 功能相似 | BYV29-400,127和MUR840G的区别 |
MUR1540G 安森美 | 功能相似 | BYV29-400,127和MUR1540G的区别 |
