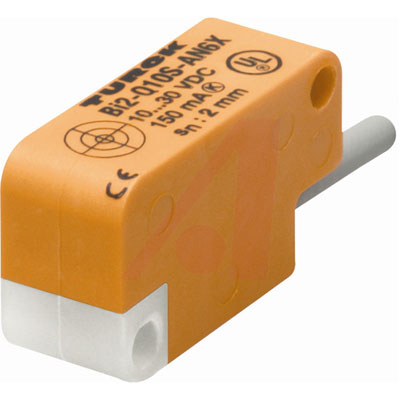

Sensor; Inductive Sensing Mode; 3-Wire DC PNP; 2; 10 to 30VDC; 150mA Max.
**TURCK ** sensors are changing the shape of sensing. They fit in confined sensing areas where other sensors won"t work with their superior 2-50 mm ranges in packages up to 10 times narrower than the competition.
* Choice of Potted-In Cable or M8 ®, M12 ® Quick-Disconnect
* Short-Circuit and Overload Protection Incorporated
* Reverse Polarity and Wire-Break Protection
* LEDs Indicate: Output Energized and Power On Both on Q08 and CK40 Only
* Normally Open or Complementary Output 1 N.O. and 1 N.C.
* Environment Rating: NEMA 1, 3, 4, 6, 13; IP67
* Operating Temperature: –13°F to +158°F; Except Bi 7 +32°F to +140°F
* Continuous Load Current: 200 mA Max.
* Voltage Drop: 1.8 VDC at 200 mA
