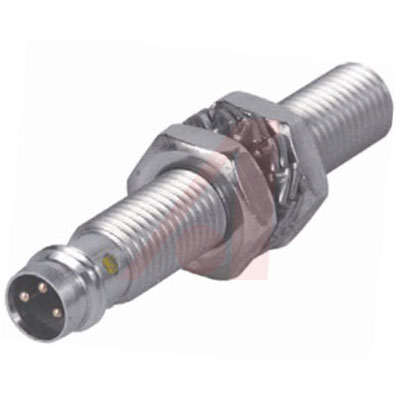

Sensor; Inductive Sensing Mode; NPN; 2mm; 10 to 30VDC; 3000Hz; SS; 70℃
Solve space problems with ® miniature inductive proximity sensors. Perfect for positioning control, small parts placement, robotic grippers, counting, inspecting and other applications where space is a problem. Self contained DC units switch 100 mA loads with tiny 4 mm, 5 mm, 6.5 mm and 8 mm diameter housings with built-in LEDs.
* Choice of Barrel with Potted-In Cable, M8 ®, M12 ®, Quick-Disconnect or Terminal Chamber
* Short-Circuit and Overload Protected
* Reverse Polarity and Wire Break Protection
* LED Indicator: Output Energized Additional Power on LED, Terminal Chamber Versions
* Normally Open Output
* Environment Rating: NEMA 1, 3, 4, 6, 13; IP67
* Operating Temperature: –13°F to +158°F
* Voltage Drop: 1.8 VDC at Max. Load Current
