B3SL 系列6 mm x 6 mm 中间行程开关 轻击操作 橡胶柱塞 ### 触控
表面安装,中间行程轻触式 - B3SL 系列
6 mm x 6 mm 中间行程开关
轻击操作
橡胶柱塞
### 触控
欧时:

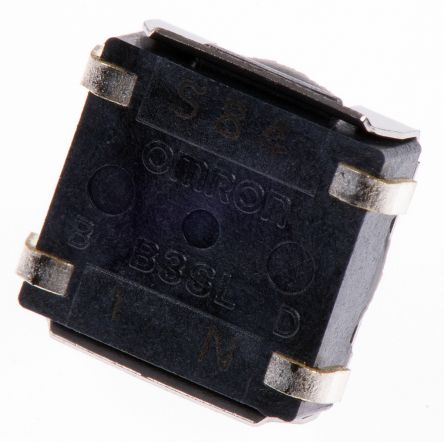

Omron IP67 蓝色 触觉式 轻触式开关 B3SL1022P, 单刀单掷 - 常开, 50 mA @ 24 V 直流 2.6mm
艾睿:
Want to use a force of pressure to turn on your circuit? Check out this B3SL-1022P tactile switch from Omron. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 12VDC. This tactile switch has a minimum operating temperature of -25 °C and a maximum of 90 °C. The B3SL-1022P tactile switch has a j-bend termination style. The maximum DC voltage rating is 12 VDC. This gray extended round button actuator is 2.6 mm long. This product is 6.5 mm long, 5.1 mm tall and 7 mm deep.
Allied Electronics:

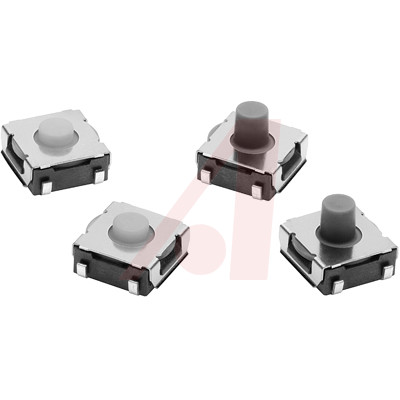

SWITCH; SMT KEYSWITCH, TACTILE & JOG SWITCHES 6X6MM, 5.1MM HEIGHT FLAT PLUNGER, T&R
安富利:
Switch Tactile N.O. SPST Extended Round Button J-Bend 0.05A 12VDC 1.96N SMD Embossed Tape
Verical:
Switch Tactile N.O. SPST Extended Round Button J-Bend 0.05A 12VDC 1.96N SMD T/R
儒卓力:
**Tact switch 6x6x5,1 SMT/J 2N **
额定电压DC 12 V
绝缘电阻 100 MΩ
排数 2
触点类型 SPST-NO
接触电阻 100 mΩ
触点额定电流 50mA @24VDC
额定电流Max 0.05 A
工作温度Max 90 ℃
工作温度Min -25 ℃
额定电压DC Max 12 V
接触电阻Max 100 mΩ
安装方式 Surface Mount
长度 6.5 mm
高度 5.1 mm
触点材质 Silver
工作温度 -25℃ ~ 90℃
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
